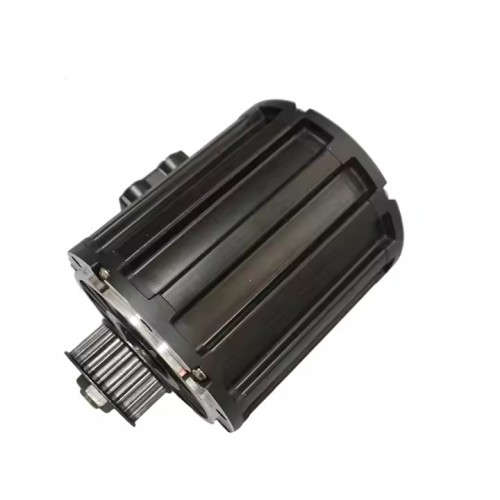

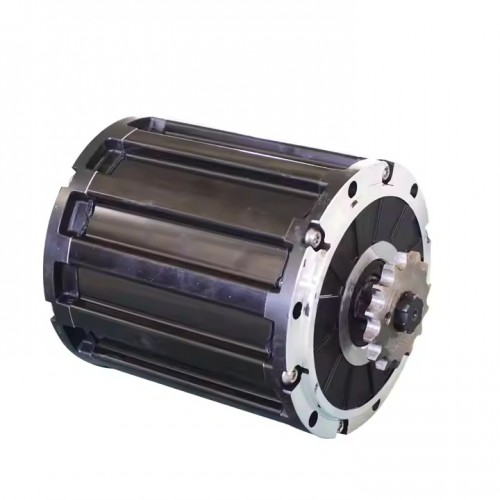

Motor Type: QS120 70H 2KW V1 Mid Drive Motor
Motor Design: PMSM
Sensor: Encorder
Magnet Height: 70 hrs
Rated Power: 2000W
Rated Voltage: 48v-72v
Speed: 2800 rpm no flue weakened, 4400 rpm flux weakened
Maximum Torque: Approx. 45.4 N.m no reduction ratio, Approx. 216.7 N.m With 1:4.77 reduction ratio
Max. DC current: 60A
Max. phase current: 250A
Max. efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensors: 1 set
Phase cables: 8 mm² cross-section of phase wires (excluding insulation)
Waterproofing rating: IP67
Color: black
N.W./ G.W.: 10.8 kg/11.5 kg
Package size: 34 cm * 33 cm
2000W 70H QS120 Electric Scooter with 72V 60KHP PMSM Mid Drive Motor
US$ 157.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v-72v
Rated Power:
2000W
Max. DC current:
60A
About this item
- Model: QS120 70H 2KW V1 Rated voltage: 48v-72v Rated power: 2000W
- Type: Mid-drive motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared with hub motors
- For electric scooter, electric motorcycle
- One year warranty
