Motor type: QS165 35H 5KW V2 mid-drive motor
Motor design: PMSM
Sensor: hall/hall selectable
Magnet height: 35 hrs
Rated power: 5000W
Peak power: 10000W
Rated voltage: 48v-72v
Speed: 5000-6500 rpm
Maximum torque: 43 Nm
Maximum DC current: 180A
Maximum phase current. 500A
Maximum efficiency: 93%
Thermal probe: KTY83-122
Operating temperature: 70-120 °C, peak 150 °C
Hall sensor: 1 set
Phase cable: 16 mm² cross section of phase wire (excluding insulation)
Waterproof rating: IP67
Colour: Black
N.W./G.W.: 8.4 kg/9.5 kg
Packing dimensions: 34 cm * 33cm

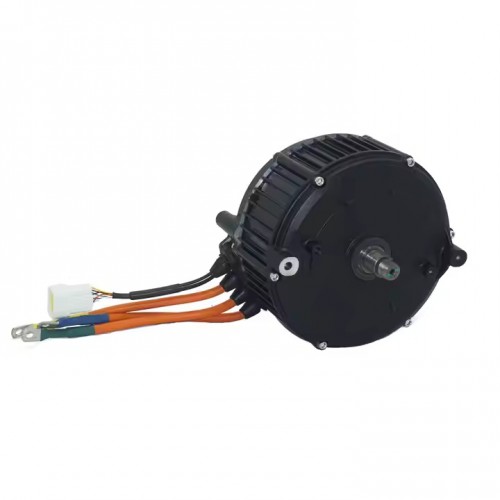

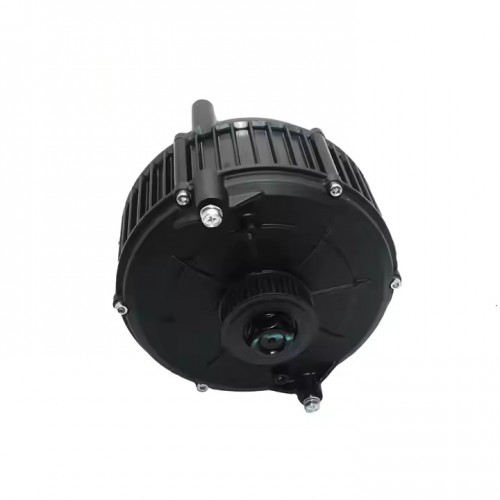

Electric Buggy Engine QS165 5000W 35h Center Drive Motor
US$ 176.00 / 1 Piece
1Piece Minimum order
Rated voltage:
48v-72v
Rated Power:
5000W
Peak power:
10000W
About this item
- Model: QS165 35H 5KW V2 Rated voltage: 48v-72v Rated power: 5000W
- Type: Mid-drive motor
- High efficiency and better acceleration when climbing hills, light weight and small size compared with hub motors
- For electric bicycles
- One year warranty
