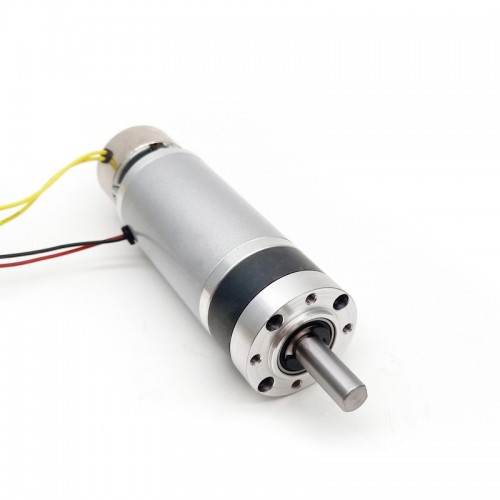

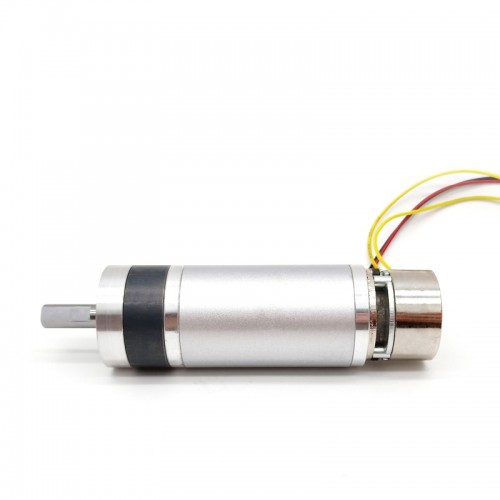

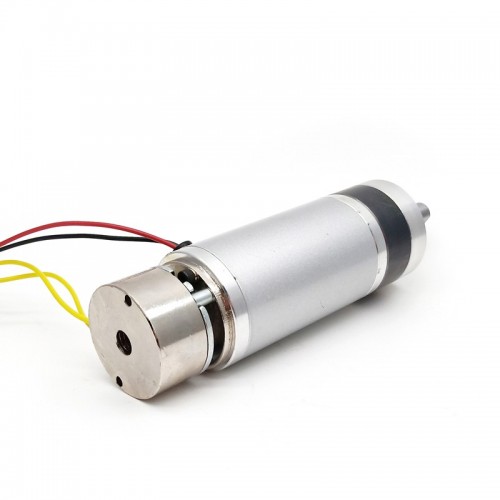

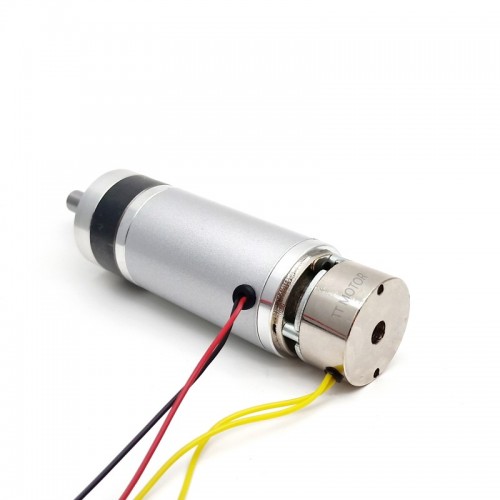

1. Small size dc gear motor with low speed and big torque
2.42mm gear motor provide 12.0Nm torque max and more reliable
3. Suitable to small diameter, low noise and big torque application
4. Dc Gear motors can match encoder,11ppr
5. Reduction Ratio: 4、19、51、100、139、189、264、369、516、720
A planetary gearbox is a frequently used reducer made up of the planet gear, sun gear, and outer ring gear. Its structure has the functions of shunting, deceleration, and multi-tooth meshing to increase output torque and increase adaptability and work efficiency. Typically, the sun gear is positioned in the center, and the planet gears rotate around it while being torqued by it. The bottom housing's outer ring gear meshes with the planet gears. We provide other motors, including coreless, brushed DC, and brushless DC motors, which can be paired with a tiny planetary gearbox for improved performance.
Applications
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Medical
Mesotherapy,insulin pump,hospital bed,Urine Analyzer
Automotive Application Market:
Electric power steering system, electronic suspension system, car stability control system, car cruise control system, ABS, body system (Windows, door locks, seats, mirrors, wipers, sunroof, etc.)
5G communication:
Base station antenna, cooling fan, air conditioning compressor
Parameters
Advantages of Planetary Gearbox
1. High torque: When more teeth are in contact, the mechanism can handle and transmit more torque uniformly.
2. Sturdy and efficient: By directly connecting the shaft to the gearbox, the bearing can reduce friction. It increases efficiency while also allowing for smoother running and rolling.
3. Unbelievably precise: Because the rotation angle is fixed, the rotation movement is more accurate and stable.
4. Less noise: Because of the numerous gears, more surface contact is possible. Jumping is rare, and rolling is much softer.
