Applications
Business Machines:
ATM, Copiers and Scanners, Currency Handling, Point of Sale, Printers, Vending Machines.
Food and Beverage:
Beverage Dispensing, Hand Blenders, Blenders, Mixers, Coffee Machines, Food Processors, Juicers, Fryers, Ice Makers, Soy Bean Milk Makers.
Camera and Optical:
Video, Cameras, Projectors.
Lawn and Garden:
Lawn Mowers, Snow Blowers, Trimmers, Leaf Blowers.
Medical
Mesotherapy,insulin pump,hospital bed,Urine Analyzer
Characters
1.Small size dc gear motor with low speed and big torque
2.28mm gear motor provide 2.0Nm torque max and more reliable
3.Suitable to small diameter, low noise and big torque application

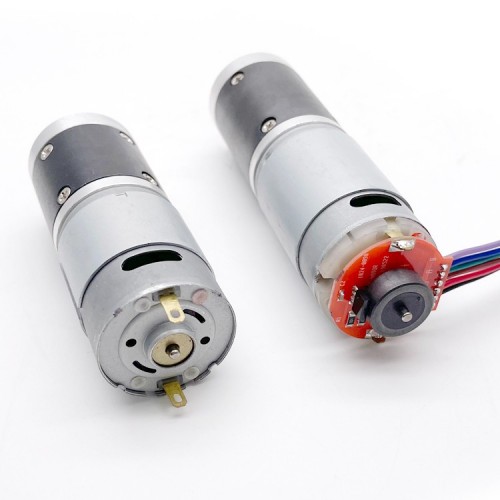

4.Dc Gear motors can match encoder, 12ppr-1024ppr
5.Reduction Ratio: 4、19、27、51、71、100、139、189、264、369、516、720
A planetary gearbox is a frequently used reducer made up of the planet gear, sun gear, and outer ring gear. Its structure has the functions of shunting, deceleration, and multi-tooth meshing to increase output torque, improved adaptability, and work efficiency. Usually positioned in the center, the sun gear imparts torque to the planet gears as they revolve around it. The planet gears mesh with the outer ring gear (which alludes to the bottom housing). We offer other motors, such as DC brushed motors, DC brushless motors, stepper motors, and coreless motors, which can be paired with a tiny planetary gearbox for improved performance.

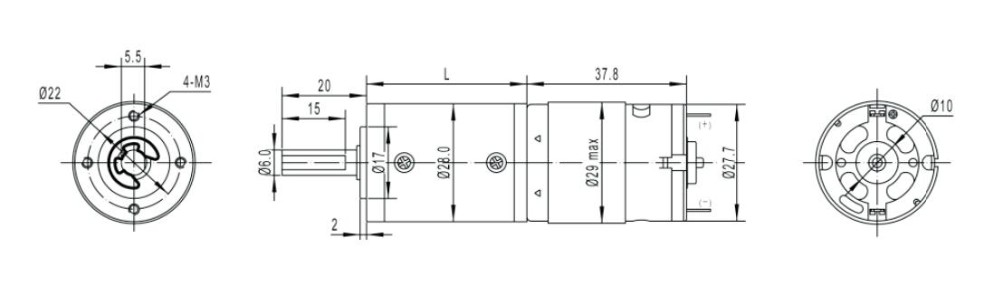

Parameters
Advantages of Planetary Gearboxes
1. High torque: When there are more teeth in contact, the mechanism can handle and transmit more torque uniformly.
2. Sturdy and effective: By directly connecting the shaft to the gearbox, the bearing can reduce friction. It increases efficiency while also allowing for smoother running and better rolling.
3. Exceptional precision: Because the rotation angle is fixed, the rotation movement is more precise and stable.
4. Less noise: The numerous gears allow for more surface contact. Jumping is virtually non-existent, and rolling is significantly softer.
Detail

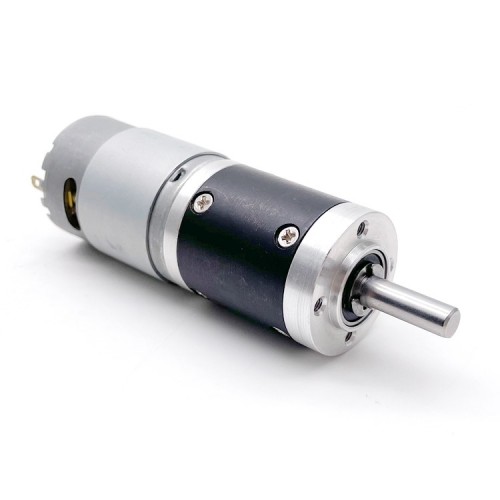

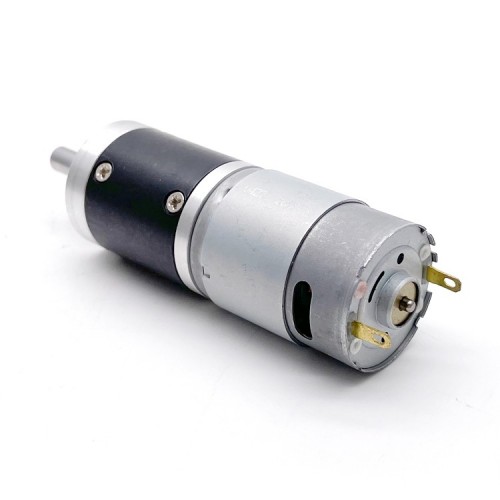

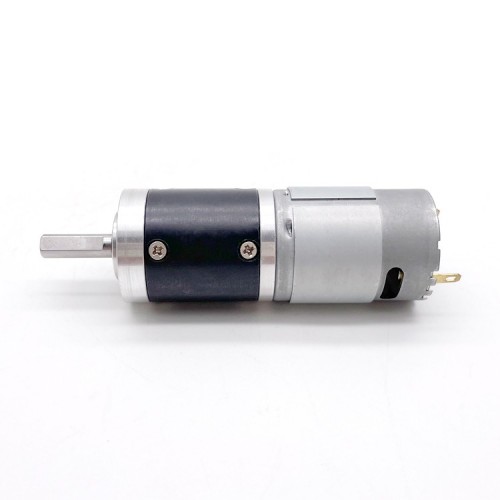

Introducing our latest innovation in motor technology, the 28 mm high torque DC planetary gear motor. This powerful motor is designed to meet the demanding demands of modern automation and robotics applications, delivering high torque and precision performance in a compact and efficient package.
At the heart of the 28mm High Torque DC Planetary Gear Motor is a high quality DC motor capable of delivering exceptional power and performance. This motor has been engineered to deliver exceptional torque output, ensuring it can handle the toughest loads with ease.
In addition to its superior torque output, the 28mm high torque DC planetary gear motor is expertly engineered to deliver precise performance. Its compact and efficient design enables it to provide smooth and accurate control, making it ideal for a wide range of automation and robotics applications.
