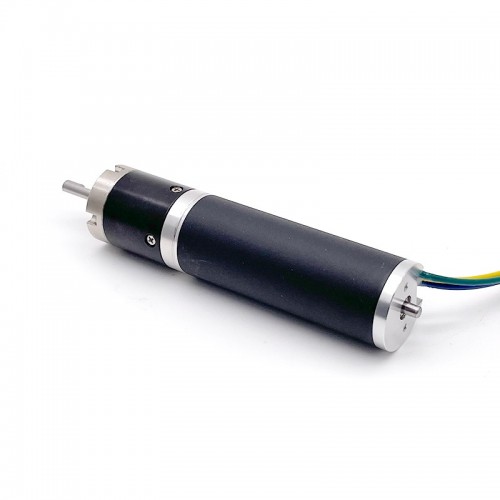

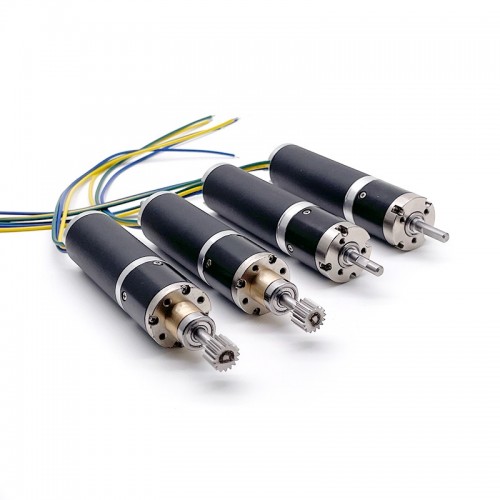

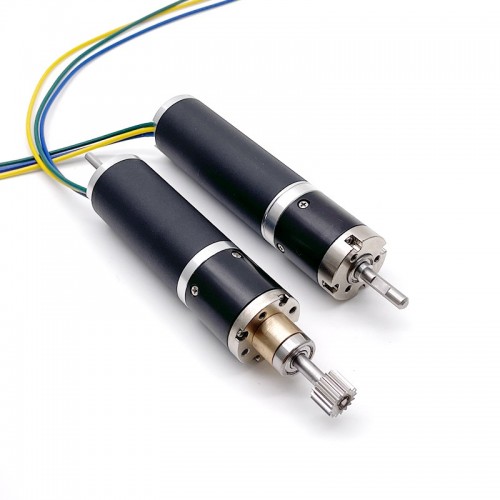

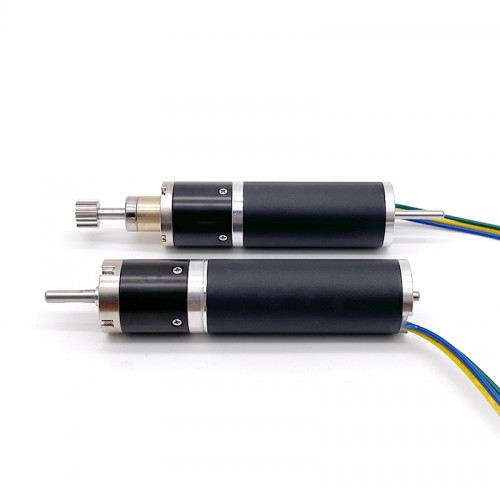

GMP22-TBC2248 diameter high torque DC coreless brushless planetary gearbox motor DC 12V 24V 22mm

US$ 29.00 / 1 Piece
1Piece Minimum order
About this item
  • A planetary gearbox is a frequently employed reducer made up of the planet gear, sun gear, and outer ring gear.
  • Its design has the features of shunting, deceleration, and multi-tooth meshing to increase output torque, greater adaptability, and work efficiency.
  • Usually positioned in the middle, the sun gear imparts torque to the planet gears as they revolve around it.
  • The planet gears mesh with the outer ring gear, which is the bottom housing.
  • We offer additional motors that can be used with a tiny planetary gearbox to improve performance, including brushed DC motors, DC brushless motors, stepper motors, and coreless motors.
TT Motor(Shenzhen) Industrial Co., Ltd
1 1 years China
Avg Response Time: ≤24 h
Business Type: Robot parts
Chat

Latest Products from this Supplier

Application


Advantages of a Planetary Gearbox

1. High torque: When there are more teeth in contact, the mechanism can handle and transmit more torque more uniformly.

2. Sturdy and effective: By connecting the shaft directly to the gearbox, the bearing can reduce friction. It increases efficiency while allowing for smoother running and better rolling.

3. Remarkable precision: Because the rotation angle is fixed, the rotation movement is more accurate and stable.

4. Less noise: The numerous gears enable more surface contact. Jumping is almost non-existent, and rolling is much softer.


Parameter


Advantages of TBC series dc coreless brushless motors

1. The characteristic curve is flat, and it can operate normally at all speeds under load rating conditions.

2. Due to the usage of a permanent magnet rotor, the power density is high while the volume is modest.

3. Low inertia and improved dynamic qualities

4. Grade, no special starting circuit.A controller is always required to keep the motor going. You may also use this controller to control the speed.

5. The frequency of stator and rotor magnetic fields is equivalent
