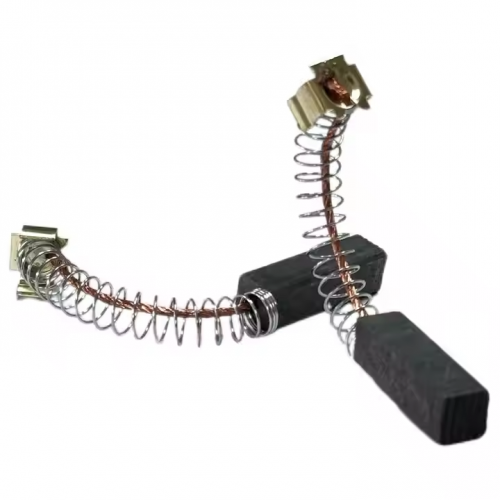

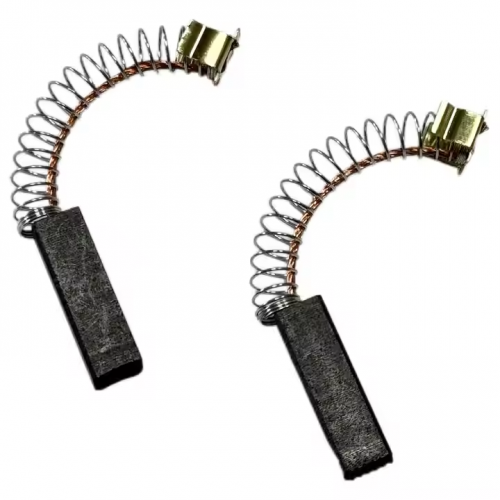

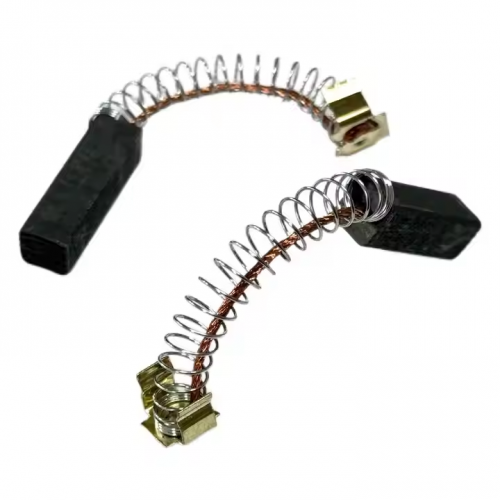

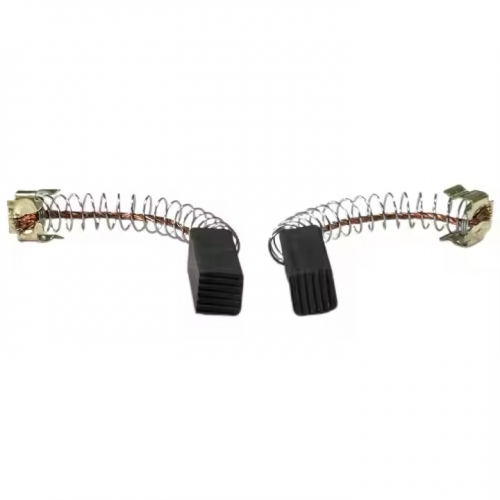

6.2*6.2*21mm Carbon Brush for Generic Electric Motor

Power Tool Replace Parts 6.2×6.2×21mm Carbon Brush for Generic Electric Motor

Key Information Analysis:

1. Product Attribute: Carbon Brush for Generic Electric Motor as Power Tool Replace Parts
   Made by pressing a mixture of high-purity graphite and an appropriate amount of metal powder (such as copper and tin), it has two core characteristics:
   • Universal adaptability: The material formula balances conductivity and wear resistance (copper content is about 15%-25%), making it suitable for various brands and models of generic motors without strictly matching specific manufacturers' specifications;
   • Structural stability: The square cross-section design (6.2×6.2mm) ensures uniform contact area with the brush holder, reducing poor contact caused by installation angle deviations and improving the stability of current conduction.
2. Compatibility Range:
   Based on the 6.2×6.2×21mm specification, it is suitable for various small and medium-sized generic electric motors. Common scenarios include:
   • Small power tools: Such as micro electric drills, handheld sanders, small polishers, electric screwdrivers, etc. (power 200-600W);
   • Household appliance motors: Drive motors for some models of small blowers, mixers, electric pruning shears, etc.;
   • Light industrial equipment: Small conveying motors, auxiliary motors for packaging machinery, etc.
     The core of compatibility is that the cross-sectional size (6.2×6.2mm) must match the inner cavity of the brush holder (with an error of ≤0.2mm). The 21mm length provides sufficient wear allowance, adapting to most compact motor designs.
3. Size Specifications: 6.2×6.2×21mm
   This size belongs to small carbon brushes. The square cross-section (6.2×6.2mm) is its prominent feature, specially designed for brush holders with limited space. The 21mm length can support a relatively long service life (about 800-1500 hours). The dimensional accuracy is controlled within ±0.1mm to ensure tight contact between the carbon brush and the commutator, reducing sparks and noise during operation.
4. Functions and Roles:
   • Serves as the "current conduction bridge" for generic motors, stably transmitting external power current to the rotor to drive power tools or equipment to start and operate normally;
   • The self-lubricating property of graphite can reduce wear on the commutator, extend the overall service life of the motor, and reduce maintenance frequency.
5. Replacement Tips:
   The carbon brush should be replaced in time when the equipment motor shows the following conditions:
   • The carbon brush is worn down to less than 1/3 of its original length (about 7mm);
   • There are significantly more sparks at the carbon brush during motor operation, accompanied by a "sizzling" abnormal sound;
   • The output power of the tool decreases, it starts slowly, or there is intermittent pause during operation.
