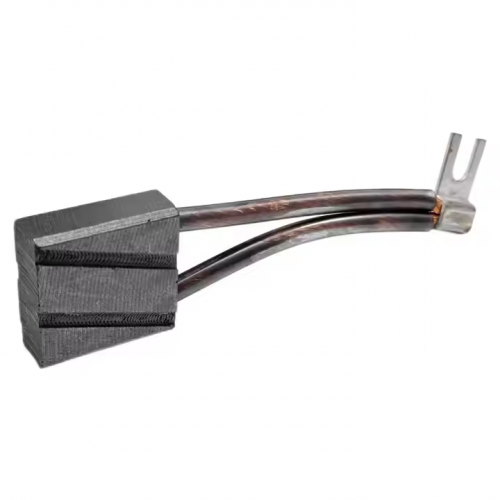

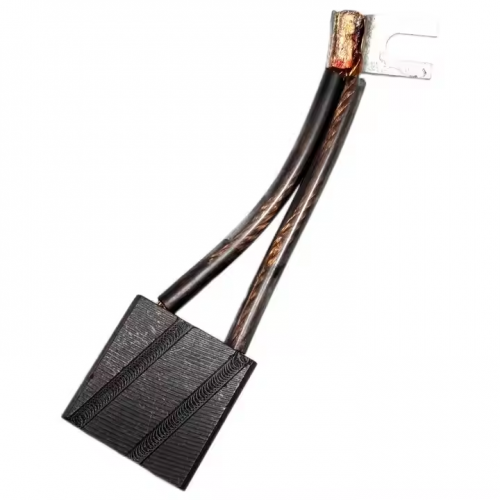

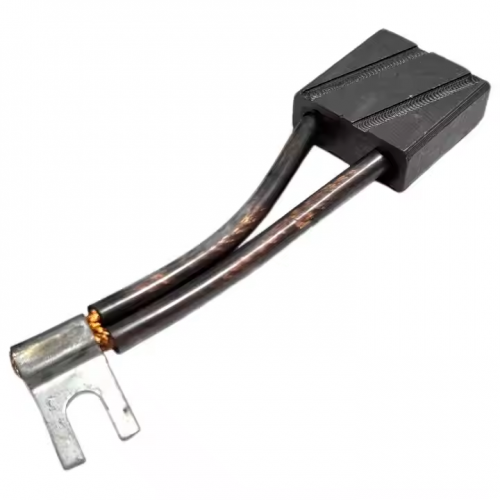

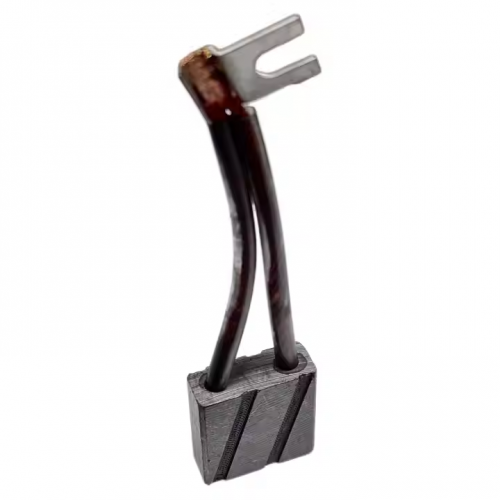

Carbon Brush 0009718156 Compatible With Electric Forklift Pallet Truck Stacker 12.5x32x32 MM

Motor Carbon Brush 0009718156 Compatible With Electric Forklift Pallet Truck Stacker 12.5×32×32 MM

Key Information Analysis:

1. Product Attribute: Specialized Carbon Brush for Industrial Vehicle Motors, Model 0009718156
   Made by precision pressing high-density graphite and high-purity copper powder (copper content approximately 35%-45%), and subjected to high-temperature curing and anti-corrosion treatment, it has three core characteristics:
   • Industrial-grade durability: The high-density and excellent wear-resistant material can withstand friction loss from high-frequency start-stop and heavy-load operation (with a load capacity of several tons) of industrial vehicles, with a service life of about 2000-3000 hours, much longer than ordinary power tool carbon brushes;
   • High current-carrying capacity: The extra-large cross-sectional size of 12.5×32mm is compatible with high-power drive motors (usually 3-10kW), meeting the strong power transmission needs of electric forklifts and other equipment, ensuring stable current during load-carrying travel and lifting operations;
   • Dedicated model adaptation: Model 0009718156 is an original factory-matched specification, precisely compatible with drive systems of industrial vehicle motors of specific brands or series (such as electric forklifts from brands like Linde and Jungheinrich), avoiding installation failures caused by dimensional deviations of general-purpose parts.
2. Compatibility Range:
   Based on the 12.5×32×32mm specification and model 0009718156, it is mainly compatible with the following equipment:
   • Electric forklifts: Drive motors and hydraulic pump motors of counterbalanced forklifts and reach trucks;
   • Short-distance transport equipment: Travel motors of electric pallet trucks and ground stackers;
   • Warehousing equipment: Drive and lifting motors of stackers and lifting platforms.
     The core of compatibility lies in the dual matching of model and size – the 12.5×32mm cross-section must fit perfectly with the inner cavity of the motor brush holder (with an error of ≤0.1mm), and the 32mm length provides sufficient wear allowance for long-term heavy-load operations. Meanwhile, it must strictly correspond to the original factory model of the equipment to ensure matching accuracy with the commutator.
3. Size Specifications: 12.5×32×32 MM
   This size belongs to large industrial-grade carbon brushes. The 32mm×32mm length and width design provides maximum contact area, reducing current density per unit area and lowering the risk of commutator overheating; the 12.5mm thickness balances structural strength and installation space, adapting to the large brush holder structure of industrial motors. The dimensional accuracy is controlled within ±0.05mm to avoid poor contact or abnormal operation noise caused by deviations.
4. Functions and Roles:
   • Serves as the "core of power conduction" for drive motors of industrial vehicles, transmitting DC power from the battery pack to the rotor through stable contact, driving the equipment to perform actions such as moving forward, backward, and lifting, and ensuring the continuity of logistics handling operations;
   • The anti-vibration and anti-corrosion properties adapt to complex environments such as warehouses and workshops (e.g., dust, slight humidity), reducing carbon brush failure caused by environmental factors and lowering the frequency of equipment shutdown for maintenance.
5. Replacement Tips:
   The carbon brush should be replaced in time when electric forklifts, pallet trucks, and other equipment show the following conditions:
   • The carbon brush is worn down to less than 1/3 of its original length (about 10.7mm), or has obvious cracks and chips;
   • There are abnormally increased sparks at the carbon brush during motor operation, accompanied by abnormal noise or weak driving (such as difficulty climbing slopes, sudden speed drop when loaded);
   • The equipment control panel displays a power system fault, or there are phenomena such as delayed start-up and jittery travel.
