Motor Type: BLDC Hub Motor
Motor Design: Twin Shaft
Magnet Height: 50mm, 16 pole pairs
Rated Power: 3000W
Peak Power: 6000W peak in a few seconds
Rated Voltage: 72 Volts
Speed: 650/820/1175 RPM selectable
Maximum Torque: 181 Nm
Cooling Method: Air Cooled
Maximum Efficiency: ≥ 91%
Thermal Probe: KTY83/122
Operating temperature: 70 - 120°C, peak150°C
Hall sensors: Dual Hall kit with waterproof connector
Phase cable: 10 mm² cross section (excluding insulation)
Waterproof rating: IP66
N.W./G.W.: approx. 14.2 kg
Packing dimensions: 34 cm * 44 cm per piece

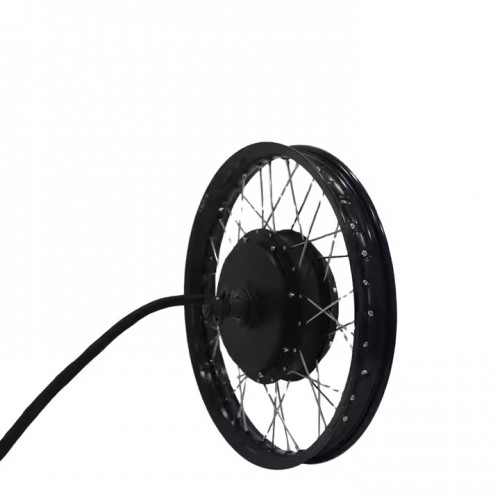

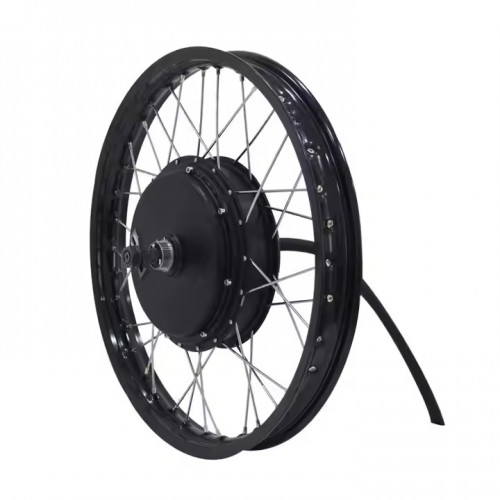

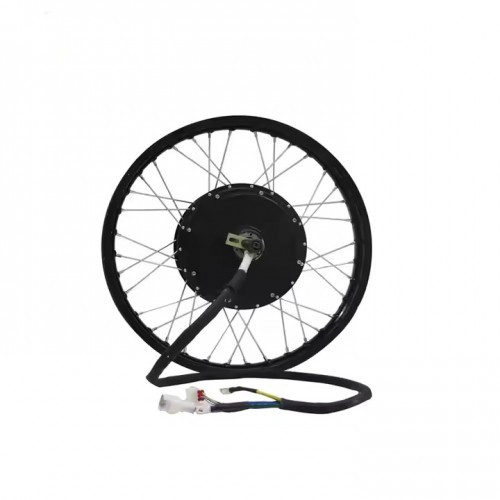

QS205 High Power Motorcycle Hub Motor with 17x1.6-inch Rear Wheel
US$ 290.00 / 1 Piece
1Piece Minimum order
About this item
- Rated voltage: 72V Rated power: 3000W
- Type: Permanent Magnet Synchronous Motor
- Includes: 1 X QS motor 205 50H 3000W V3TI motor, 1 X 17/18/19x1.6/1.8/1.85/2.5-inch wheel, 36 X 10 grams spokes and spoke holes (silver spokes by default)
- Suitable for e-bikes
- One year warranty
