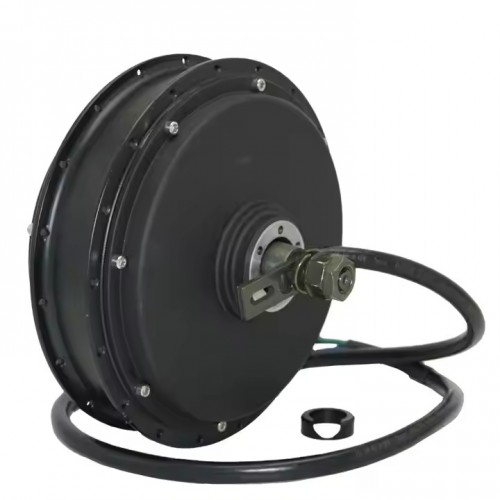

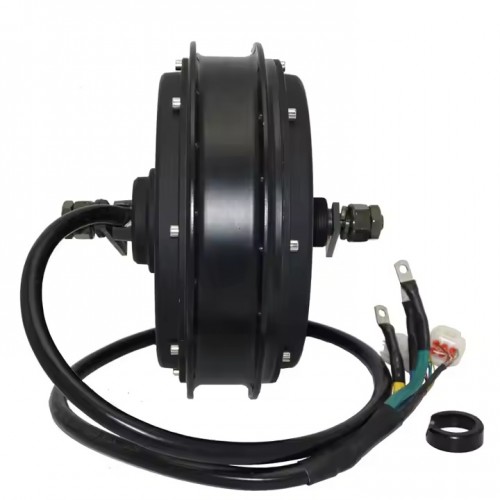

Motor Type: BLDC Hub Motor
Motor Design: Dual Axis
Color: Black
Magnet Height: 50mm, 16 Pole Pair
Rated Power: 3000W
Peak Power: 6000W peak in a few seconds
Rated Voltage: 72 Volts
Speed: 650/820/1175 RPM Selectable
Maximum Torque: 181 Nm
Maximum Efficiency: ≥91%
Cooling Method: Air Cooled
Thermal Probe: KTY83 /122
Operating temperature: 70 - 120°C, peak150°C
Hall sensors: double Hall kit with waterproof connector
Phase cable: 10 mm² cross section (insulation not included)
Waterproof rating: IP66
N.W./G.W.: approx. 14.2 kg
Packing dimensions: 34 cm * 44 cm per piece
QS205 5t high torque 5000 watt motor hub 48v/60v/72v 80kph-96v 5t 70-100kph
US$ 215.00 / 1 Piece
1Piece Minimum order
About this item
- Rated voltage: 72V Rated power: 3000W
- Type: Spoke Hub Motor
- Contains: 1pc X 205 50H 3000W V3TI Motor, 1pc X Spacer
- For Electric Motorcycle
- One year warranty
