1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual axle out with 10-inch rims
3. Rim size and material: 2.15-10 iron rims
4. Matching tires: 3.0-10, 3.5-10
5. magnet height: 45mm
6. Number of pole pairs: 23 pairs
7. Rated power: 2000W
8. Maximum power: 2900W
9. Rated voltage: 48V / 60V / 72V
10. Speed: 55km/h (30-75km/h can be customized)
11. Maximum no-load speed: 800RPM
12. Maximum torque: approx. 145N.M
13. Maximum Efficiency: 88%.
14. Rated current: 31A
15. Maximum current: 55A
16. Brake type: disk brake or drum brake (optional)
17. Mounting rear fork width: 200mm
18. Phase wire cross section: 6 mm2
19. Shaft thread: M12
20. Hall sensor phase angle: 120 degrees 21.
21. Sensor type: Hall sensor (3 pcs.) 22.
22. Maximum operating temperature: 70 degrees, peak 120 degrees
23. Cooling method: air-cooled
24. Waterproof rating: IP66
25. NW/G...W.: 11 kg / 12 kg

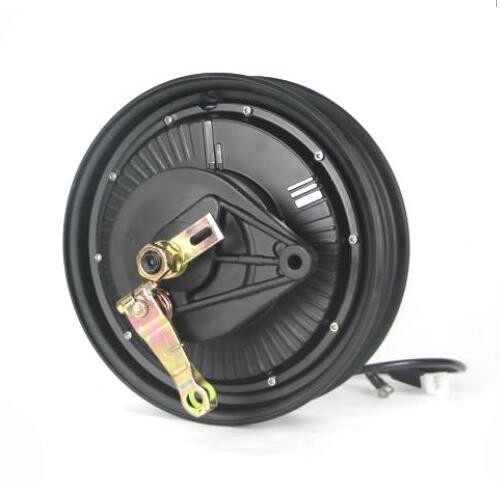

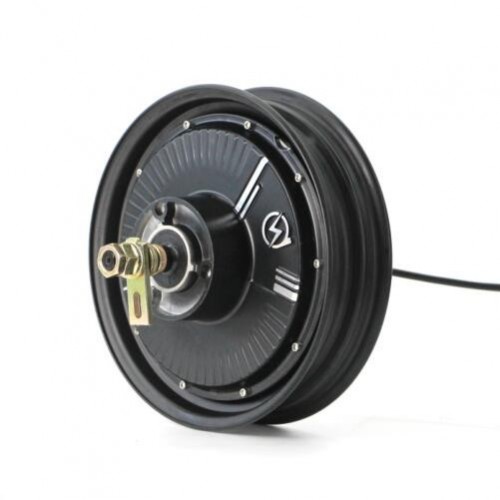

QS212 10-inch electric scooter hub motor (45H) 2000W V1 type
US$ 495.00 / 1 Piece
1Piece Minimum order
About this item
- Rated voltage: 48V / 60V / 72V Rated power: 2000W
- Type: Hub Motor
- Brake type: disk brake or drum brake (optional)
- Suitable for electric scooters
- One year warranty
