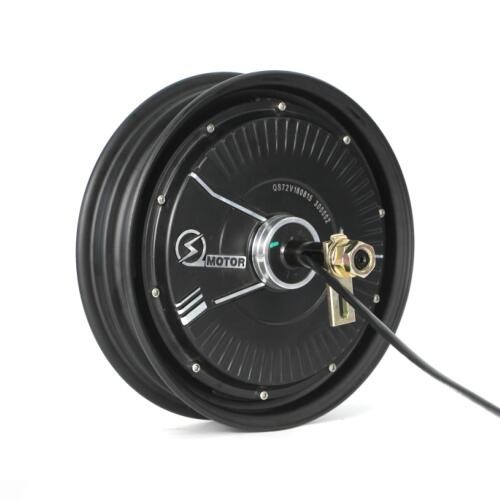

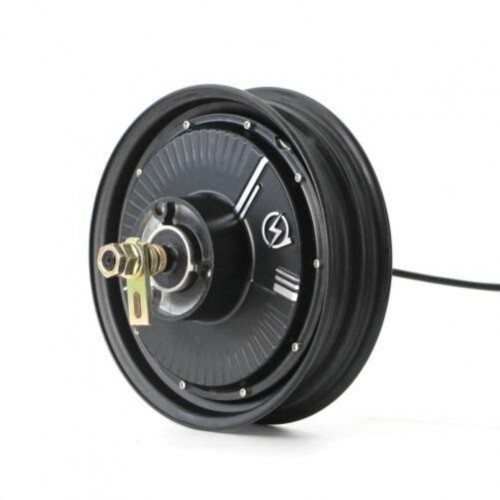

QS212 10-inch Electric Scooter Hub Motor (30H) 1000W V1 Type

1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual axle out with 10-inch rims
3. Rim size and material: 2.15-10 iron rims
4. Matching tires: 3.0-10, 3.5-10
5. magnet height: 30mm
6. Number of pole pairs: 23 pairs
7. Rated power: 1000W
8. Maximum power: 1600W
9. Rated voltage: 48V/60/72V 10.
10. Speed: 30-50km/h (can be customized)
11. Maximum no-load speed: approx. 650RPM
12. Maximum torque: 100N.M
13. Maximum Efficiency: 87%.
14. Rated current: 24A
15. Maximum current: 35A
16. Brake type: disk brake or drum brake (optional)
17. Mounting rear fork width: 200mm
18. Phase wire cross section: 3 mm2
19. Shaft thread: M12
20. Hall sensor phase angle: 120 degrees 21.
21. Sensor type: Hall sensor (3 pcs.) 22.
22. Maximum operating temperature: 70 degrees, peak 120 degrees
23. Cooling method: air-cooled
24. Waterproof rating: IP67
25. NW/G...W.: 11 kg / 12 kg
