1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual axle out with 10-inch rims
3. rim size and material: 2.15-10 iron rims
4. Matching tires: 3.0-10, 3.5-10
5. magnet height: 40mm
6. Number of pole pairs: 23 pairs
7. Rated power: 1500W
8. Maximum power: 2500W
9. Rated voltage: 48V / 60V / 72V
10. Speed: 45km/h (30-55km/h can be customized)
11. Maximum no-load speed: 700RPM
12. Maximum torque: 105N.M
13. Maximum Efficiency: 89% 14.
14. Maximum current: 40A
15. Brake type: disk brake or drum brake (optional)
16. Mounting rear fork width: 200mm
17. Phase wire cross section: 4 mm2
18. Shaft thread: M12
19. Hall sensor phase angle: 120 degrees 20.
20. Sensor type: Hall sensor (3 pcs.) 21.
21. Maximum operating temperature: 70 degrees, peak 120 degrees
22. Cooling method: air-cooled
23. Waterproof rating: IP66
24. Northwest / G..W.: 11 kg / 12 kg

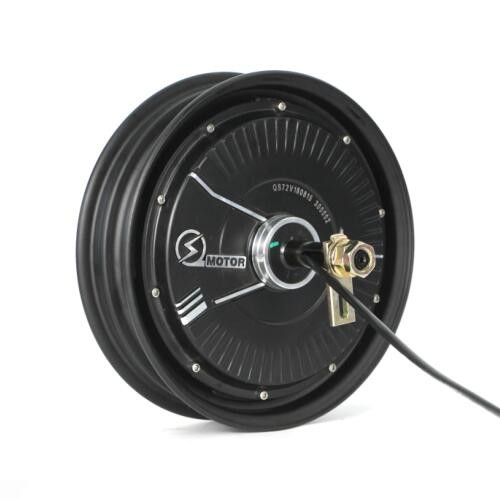

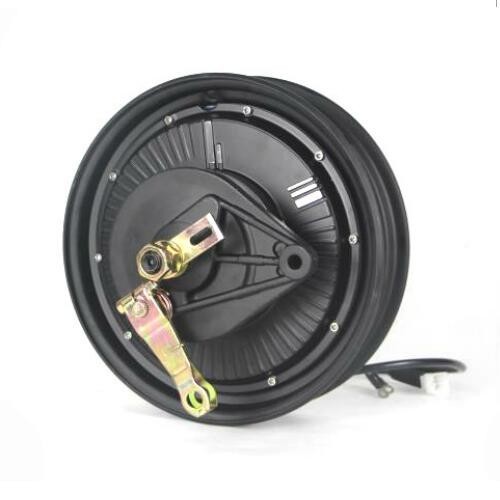

QS212 10-inch Electric Scooter Hub Motor (40H) 1500W V1 Type
US$ 85.60 / 1 Piece
1Piece Minimum order
About this item
- Model: QS212 Rated voltage: 48V/60/72V Rated power: 1500W
- Type: Brushless Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
