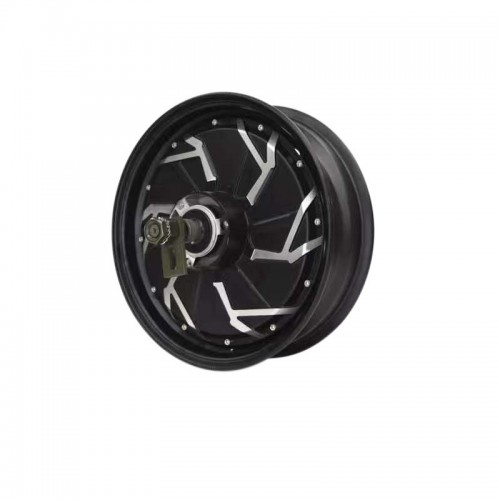

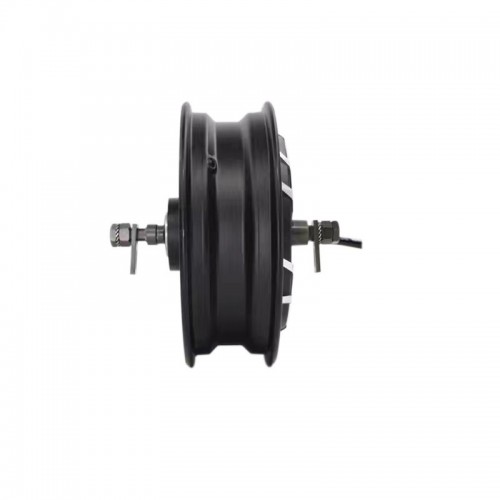

QS260 12-inch Electric Scooter Hub Motor 10000W V4 Type

1. Motor type: brushless DC hub motor with permanent magnet and Hall sensor
2. Motor design: Dual axle out with 12-inch aluminum rims
3. Rim size: 3.5x12
4. Matching tires: 130/70-12
5. magnet height: 70MM
6. Number of pole pairs: 16 pairs
7. Rated power: 10000W
8. Peak power: 200000W
9. Rated voltage: 72V
10. Maximum speed: 70KPH
11. Maximum no-load speed: 1500RPM
12. Maximum torque: 350N.M
13. Maximum Efficiency: 91%
14. Continuous Current: 140A
15. Maximum current: 200A , peak 290A
16. Brake Type: Disc Brake
17. Width of mounted rear fork: 230mm
18. Hall sensor: two sets of Hall sensors (Model: SS413F)
19. Winding frame material: aluminum
20. Phase line cross section: 25mm2
21. Hall sensor phase angle: 120 degrees
22. Temperature sensor: KTY83-122 23.
23 Maximum operating temperature: 70-120 degrees, peak 150 degrees
24. Waterproof rating: IP66
25. Working system: S9
26. Cooling Method: Natural
27. NW/G. Weight : 35 kg / 36 kg
28. Package size: 43*43*40CM
