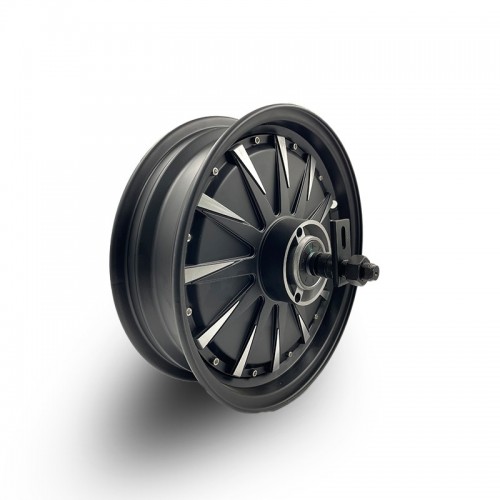

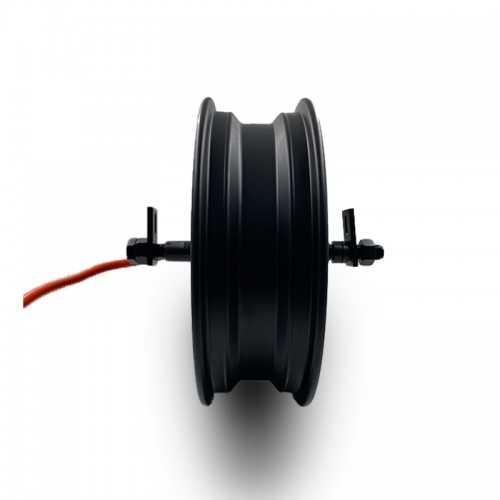

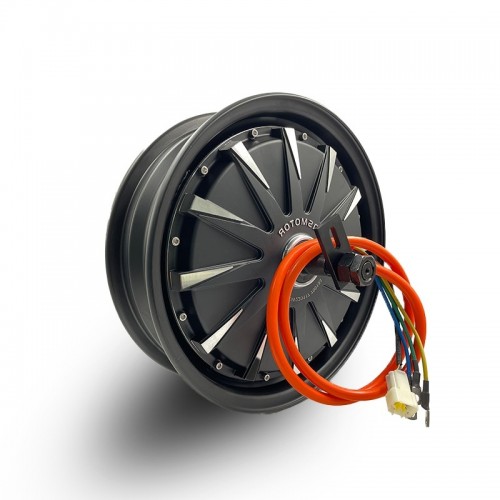

QS254 12 inch 254 Electric Scooter Hub Motor (35H) 2000W V1 Type

1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: dual-axis outboard with 12-inch rims
3. Rim size: 3.5*12,2.5*12
4. Matching tires: 120/70-12,100/80-12
5. magnet height: 35mm
6. Number of pole pairs: 24 pairs
7. Rated power: 2000W
8. Maximum power: 3200W
9. Rated voltage: 48V (60V/72V optional)
10. Speed: 45km/h (30-65km/h can be customized)
11. Maximum no-load speed: 800RPM
12. Maximum torque: 120N.M
13. Maximum Efficiency: 86%
14. Continuous current: 40A
15. Maximum current: 55A
16. Brake type: 110mm drum brake
17. Mounting rear fork width: 200mm
18. Phase wire cross-section: 6 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, peak 120 degrees 22.
22. Waterproof rating: IP67
23. Color: Black
24. Northwest / G..W.: 15 kg / 16 kg
25. Package size: 44*43*34CM
