1. motor type: BLDC hub motor with permanent magnet
2. Motor design: dual-axis with 13-inch rims
3. rim size: 3.5*13
4. matching tires: 120/70-13, 130/70-13
5. magnet height: 35mm
6. Number of pole pairs: 24 pairs
7. Rated power: 2000W
8. Maximum power: 3200W
9. Rated voltage: 48V, 60V, 72V
10. speed: 45km/h (30-65km/h can be customized)
11. Maximum no-load speed: 800RPM
12. Maximum torque: 130N.M
13. Maximum efficiency: 90%
14. Maximum Continuous Current: 40A at 72V
15. Brake Type: Disc Brake
16. Mounting rear fork width: 200mm
17. Phase wire cross section: 6 mm2
18. Hall sensor phase angle: 120 degrees 19.
19. Temperature sensor: optional
20. Maximum operating temperature: 70 degrees, peak 120 degrees 21.
21. Waterproof rating: IP67
22. Color: Black
23. Northwest / G...W.: 15 kg / 16 kg
24. Package size: 44*43*34CM

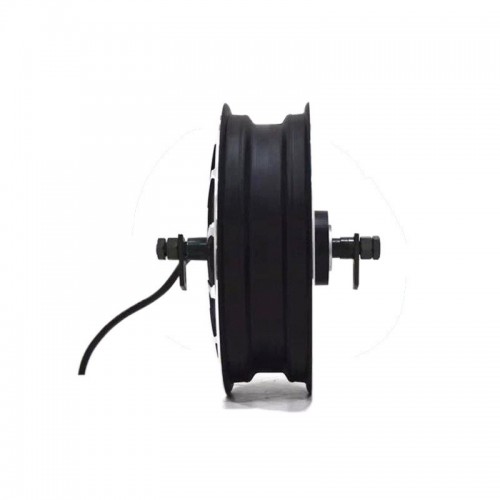

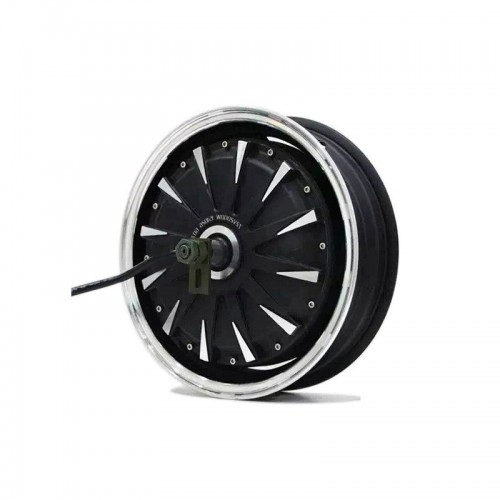

QS260 13 inch 254 Electric Scooter Hub Motor (35H) 2000W V1 Type
US$ 136.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS260 Rated voltage: 48V, 60V, 72V Rated power: 2000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric motorcycle
- One year warranty
