1. Motor Type: BLDC Hub Motor with Permanent Magnet
2. Motor design: dual shaft output with 13" aluminum rims
3. rim size: 3.5x13
4. Matching Tires: 130/60-13
5. magnet height: 50mm
6. Number of pole pairs: 28 paris
7. Rated power: 7000W
8. Maximum power: 8600W (peak 14000W)
9. rated voltage: 72V (72-144V optional)
10. speed: 115km/h (30-115km/h customizable)
11. Maximum no-load speed: 1440RPM
12. Maximum torque: 200N.M
13. Maximum Efficiency: 89%.
14. Continuous current: 114A
15. Maximum current: 140A, peak 240A 16.
16. Brake Type: Disc Brake
17. Fog width after installation: 200mm
18. Winding bracket material: aluminum
19. Phase wire cross section: 16 mm2 20.
20 Hall sensor phase angle: 120 degrees 21 Temperature sensor: optional
21. temperature sensor: optional
22. Maximum working temperature: 70-120 degrees, peak 150 degrees
23. Waterproof rating: IP66
24. Northwest/G... Width ： 22kgs / 23kgs
25. Package Size：44*43*34CM

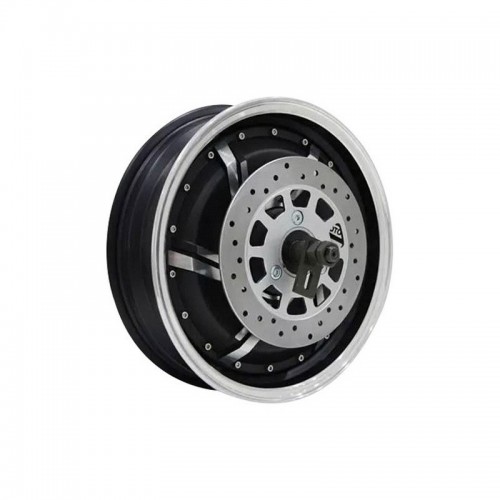

QS273 13 inch 273 Electric Scooter Hub Motor (50H) 7000W V2 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS273 Rated voltage: 72V Rated power: 7000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric motorcycle
- One year warranty
