1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: dual axle out with 14" aluminum rims
3. rim size: 2.75x14
4. Matching Tires: 110/80-14
5. Number of pole pairs: 16 pairs
6. Rated power: 6000W
7. maximum power: 7905W (peak 12000W)
8. Rated voltage: 72V (72-144V optional)
9. Speed: 110km/h (30-110km/h customizable)
10. Maximum no-load speed: 1339RPM
11. Maximum torque: 293N.M
12. Maximum efficiency: 90%
13. Continuous current: 91A
14. Maximum current: 119A, peak 180A 15.
15. Brake Type: Disc Brake
16. Mist width after installation: 200mm
17. Winding bracket material: aluminum
18. Phase wire cross section: 16 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. NW/G. Width ： 22kgs / 23kgs
24. Package size : 44*43*34CM

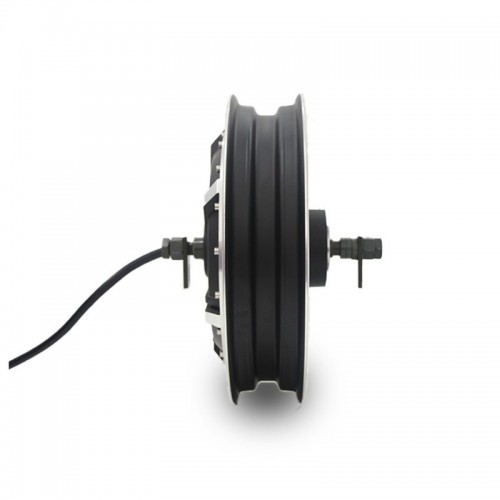

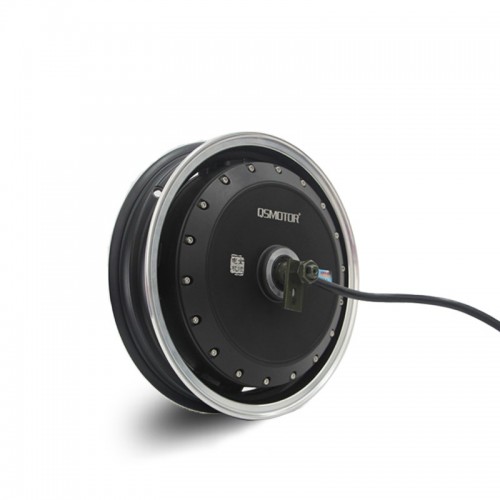

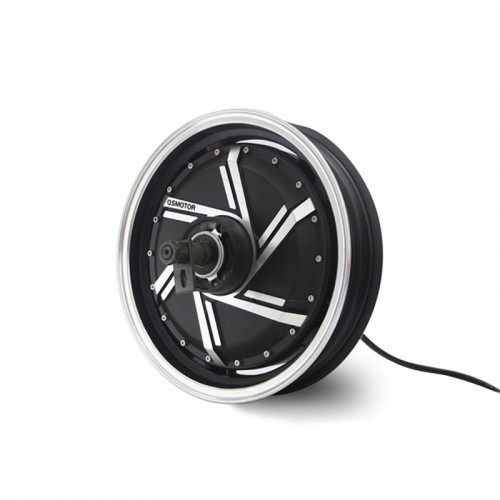

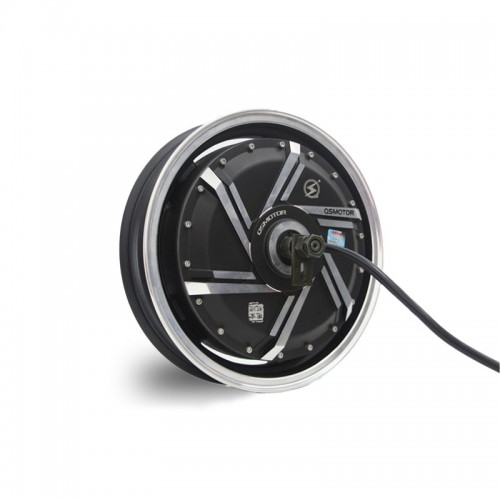

QS273 14 inch 273 Electric Scooter Hub Motor (45H) 6000W V3 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS273 Rated voltage: 72V, 84V, 96V, 120V, 144V Rated power: 6000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric motorcycle
- One year warranty
