1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: twin off-axis with 14-inch rims
3. Rim size: 2.5x14,3.5x14
4. Matching tires: 100/90-14, 120/70-14, 130/70-14
5. magnet height: 35mm
6. Number of pole pairs: 24 pairs
7. Rated power: 2000W
8. Peak power: 4000W
9. Rated voltage: 48V, 60V, 72V
10. Maximum speed: 60-65kph
11. Maximum no-load speed: 750RPM
12. Maximum torque: 110N.M
13. Maximum Efficiency: 86%
14. Continuous current: 48A
15. Maximum current: 60A
16. Brake Type: Disc Brake
17. Width of mounted rear fork: 200mm
18. Phase wire cross section: 6 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, peak 120 degrees 22.
22. Waterproof rating: IP67
24. Northwest / G..W.: 15 kg / 16 kg
25. package size: 44 * 43 * 34CM

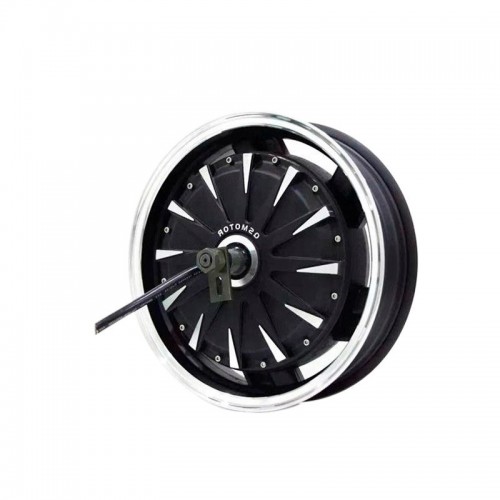

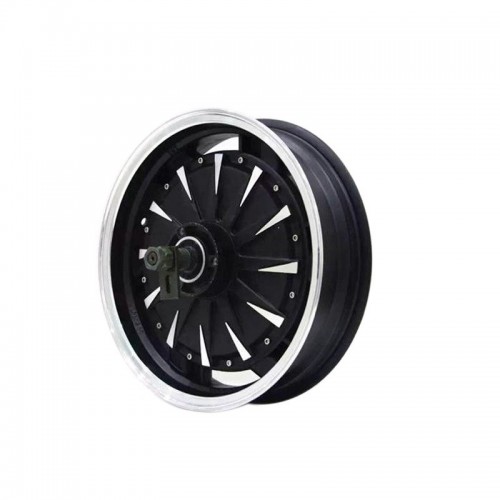

QS254 14in Electric Scooter Hub Motor 35H 2000W V1.2 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model No.: QS254 Rated Voltage: 48V / 60V / 72V Rated Power: 2000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
