1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: twin off-axis with 14-inch rims
3. Rim size: 2.5x14,3.5x14
4. Matching tires: 100/90-14, 120/70-14, 130/70-14
5. magnet height: 35mm
6. number of pole pairs: 24 pairs
7. Rated power: 2000W
8. Maximum power: 3200W
9. Rated voltage: 48V, 60V, 72V
10. speed: 45km/h (30-65km/h can be customized)
11. Maximum no-load speed: 800RPM
12. Maximum torque: 130N.M
13. Maximum efficiency: 90%
14. Maximum Continuous Current: 40A at 72V
15. Brake Type: Disc Brake
16. Mounting rear fork width: 200mm
17. Phase wire cross section: 6 mm2
18. Hall sensor phase angle: 120 degrees 19.
19. Temperature sensor: optional
20. Maximum operating temperature: 70 degrees, peak 120 degrees 21.
21. Waterproof rating: IP67
23. Northwest / G. W.: 15 kg / 16 kg
24. Package size: 44*43*34CM

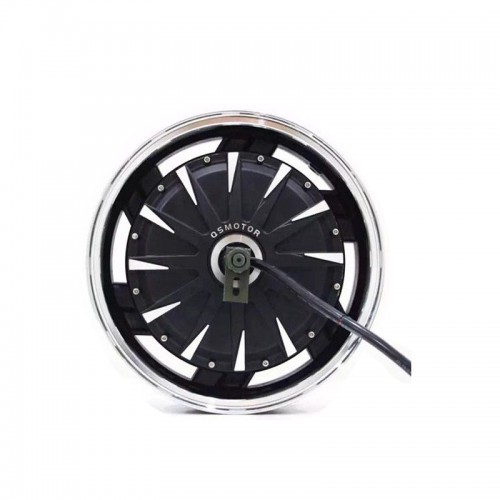

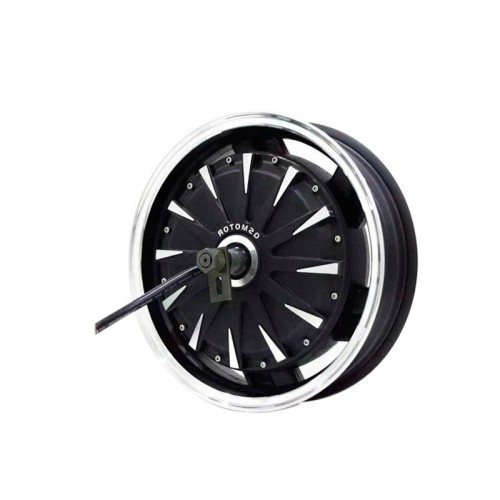

QS254 14in Electric Scooter Hub Motor 35H 2000W V1 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model No.: QS254 Rated Voltage: 48V / 60V / 72V Rated Power: 2000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
