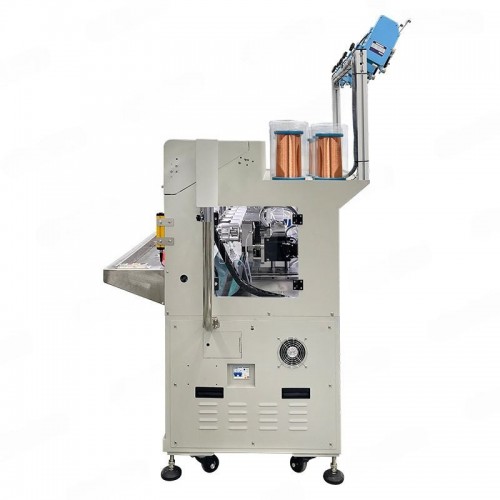

QWM-R6210 6+6 Stations 3D Automatic Winding Machine

US$ 10000.00 / 1 Piece
1Piece Minimum order
Brand:
QIWEI
About this item
  • 12 stations(6 stations winding + 6 stations loading and unloading)automatic winding, automatic wiring, automatic pole changeing, automaticwrapping PIN angle, automatic dividing line, automatic cutting line headand end. Can store more than 50 different specifications winding way
  • Adopting Qiwei high-speed control system, imported precision lead screw,imported servo motor drive, Chinese and English touch screen interface，additionalupper and lower axis motion mechanism of three dimensional motionmode: the X, Y, Z three axis linkage, a more practical and narrow spaceand wrap angle, angle of bound more closely rules, to achieve uniformwinding package, high stability.
  • The main frame and three-dimensional motion mechanism are made ofhigh quality casting parts, with high machining accuracy, firm and reliable.
  • Corresponding to the simple replacement of fixture structure, fixture canbe exchanged in a short time.
  • Optional safety grating, pneumatic scissors, servo tension system, etc.
Dongguan Qiwei Motor Technology Co., Ltd
1 1 years China
Avg Response Time: ≤24 h
Business Type: Source Material
Chat

Products related to this item

Latest Products from this Supplier

Gasket Kit For KTM SX 50 06-08 SX 50 Mini 08 SX PRO JR 50 01-08 SX PRO SR 50 02-05
Motorcycle Top End Gasket Kit For KTM EXC400, EXC-G400, MXC400, SX 400, XC-W400, SMS450, XC-R450
Motorcycle Top End Gasket Kit For KTM FC350 19-21
Gasket Kit For KTM EXC-F 450 20 EXC-F 450 Six Days 17-19 EXC-F 500 17-20 EXC-F 500 Six Days 20 For Husqvarna FE 450 18-20 FE 501 17-20 FE 501s 20
Motorcycle Top End Gasket Kit For KTM 250 SXF 13-15 For Husqvarna FC250 14-15
Motorcycle Top End Gasket Kit For KTM EXC 300 94-03 MXC 300 94-03 SX 300 94
Motorcycle Top End Gasket Kit For KTM SX-F 250 05-12 XC-F 250 07-09 11-12 XC-FW 250 06-13
Gasket Kit For For KTM XC 250 08-16 XC-W 250 08-16 For Husqvarna TE250 14-16 For Husaberg TE250 11-14
Gasket Kit For KTM 65SX 98-07
Gasket Kit For KTM EXC 250 00-03 MXC 250 00-01 SX 250 00-02 SXS 250 01
Gasket Kit For KTM 450EXC 08-11
Gasket Kit For KTM MINI ADV 50 97-00

Supply voltage：220V+10% 50HZ

Source pressure：0.45-0.7Mpa

Rated power：3KW

Rated speed：3000-6000rpm

Counting accuracy：+0.01/circle

Line type precision：0.01mm

Angular accuracy：0.1°

Optimum winding diameter：Φ0.03-Φ0.40mm

Overall dimension：1520x1250x1 500mm

Machine weight：500KG


Technical parameters:

Supply voltage: 220V±10%   50HZ

Source pressure: 0.45-0.7Mpa

Rated power: 3KW

Rated speed: 3000-6000rpm

Counting accuracy: ±0.01 /circle

Line type precision: 0.01mm

Angular accuracy: 0. 1°

Optimum winding diameter: Φ0.03-Φ0.40mm

Overall dimension: 1520x1250x1500mm\

Machine weight: 500KG
