1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: Dual off-axis with 16" aluminum rims
3. rim size: 3.0x16
4. Matching Tires: 120/60-16
5. magnet height: 50mm
6. number of pole pairs: 28 pairs
7. Rated power: 8000W
8. maximum power: 11280W (peak 14000W)
9. rated voltage: 72V (72-144V optional)
10. Speed: 120km/h (30-115km/h customizable)
11. Maximum no-load speed: 1400RPM
12. Maximum torque: 200N.M
13. Maximum Efficiency: 89%.
14. Continuous current: 130A
15. Maximum Current: 190A, Peak 260A 16.
16. Brake Type: Disc Brake
17. Mounting rear fork width: 200mm
18. Winding bracket material: aluminum
19. Phase wire cross section: 16 mm2 20.
20. Hall sensor phase angle: 120 degrees 21.
21. Temperature sensor: KTY83-122 22.
22 Maximum operating temperature: 70-120 degrees, peak 150 degrees 23 Waterproof grade: IP66
23. Waterproof rating: IP66
24. Northwest / G... Width : 22kgs / 23kgs
25. Package size: 44*43*34CM

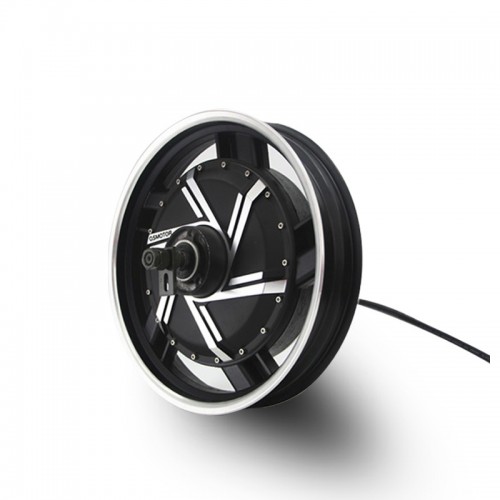

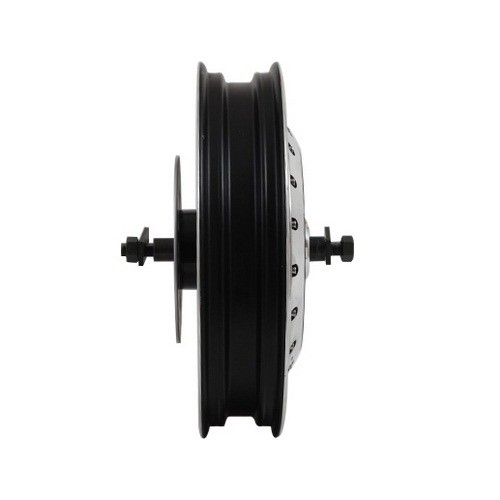

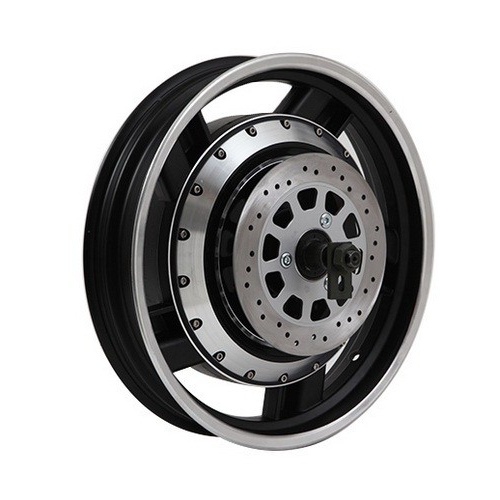

QS273 16-inch Electric Scooter Hub Motor (50H) 8000W V2 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS273 Rated voltage: 72V (72-144V optional) Rated power: 8000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
