1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: Dual axle out with 1 x 6" aluminum rim
3. rim size: 3.0x16
4. Tires: 120/60-1 6
5. magnet height: 40mm
6. number of pole pairs: 16 pairs
7. Rated power: 3000W
8. Peak power: 5200W
9. Rated voltage: 72V (48-96V optional)
11. Maximum torque: 225N.M
12. Maximum Efficiency: 90%
13. Continuous current: 50A
14. Maximum current: 100A
15. Brake Type: Disc Brake
16. Mist width after installation: 200mm
17. Winding bracket material: aluminum
18. Phase wire cross section: 16 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. NW/G. Weight ： 21kgs / 22kgs
24. Packing size：44*43*34CM

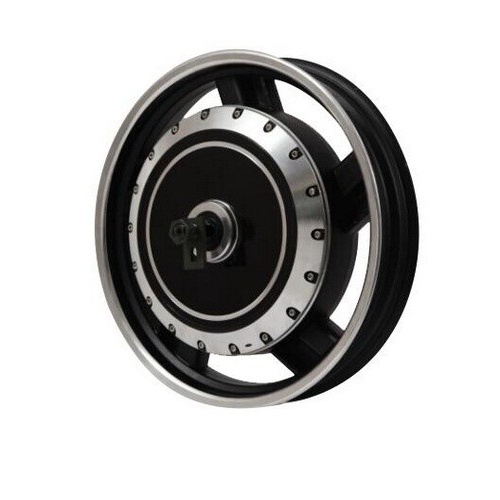

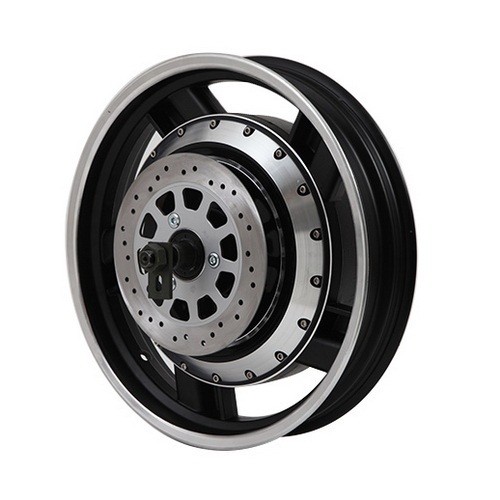

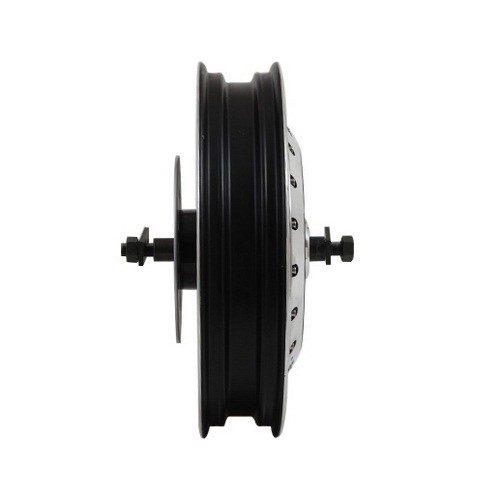

QS273 16 inch 273 Electric Scooter Hub Motor (40H) 3000W V3 Type
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model No.: QS273 Rated voltage: 72V (48-96V optional) Rated power: 3000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric motorcycle
- One year warranty
