1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: dual off-axis with 16-inch rims
3. Rim size: 2.75x16,3.5x16
4. Matching tires: 100/90-16, 120/70-16, 130/70-16
5. magnet height: 30MM
6. Number of pole pairs: 24 pairs
7. Rated power: 1500W
8. Maximum power: 2700W
9. Rated voltage: 48V, 60V, 72V
10. Maximum speed: 35KPH-60KPH
11. Maximum no-load speed: 750RPM (customizable)
12. Maximum torque: 98N.M
13. Maximum Efficiency: 86%
14. Continuous current: 36A
15. Maximum current: 45A
16. Brake Type: Disc Brake
17. Width of mounted rear fork: 200mm
18. Phase wire cross section: 4 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, peak 120 degrees 22.
22. Waterproof rating: IP67
23. Northwest / G. W.: 15 kg / 16 kg
24. package size: 44 * 43 * 34CM

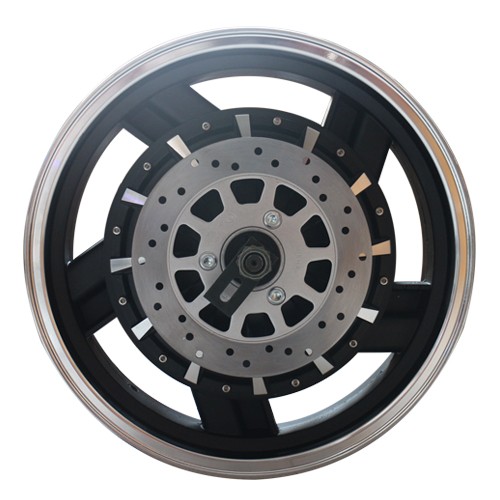

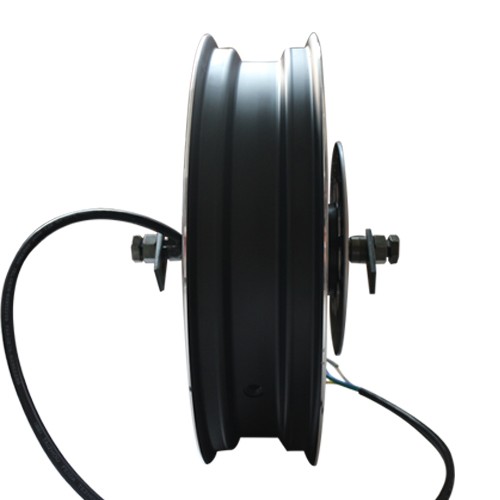

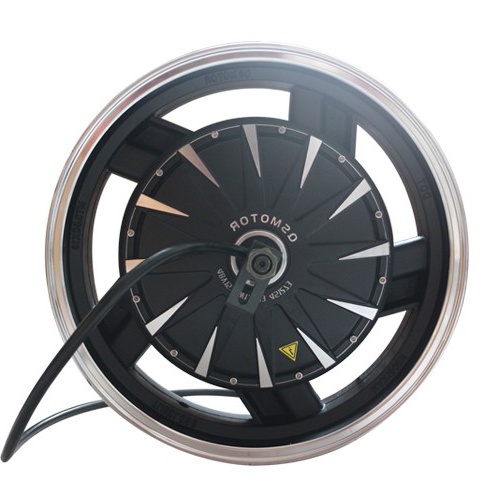

QS254 16-inch Electric Scooter Hub Motor (30H) 1500W V1 Type
US$ 199.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS254 Rated voltage: 48V / 60V / 72V Rated power: 1500W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
