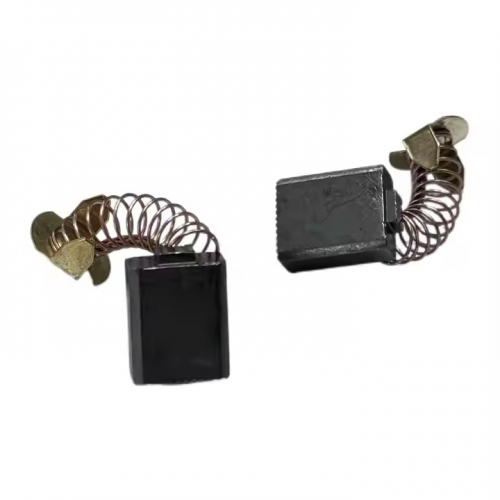

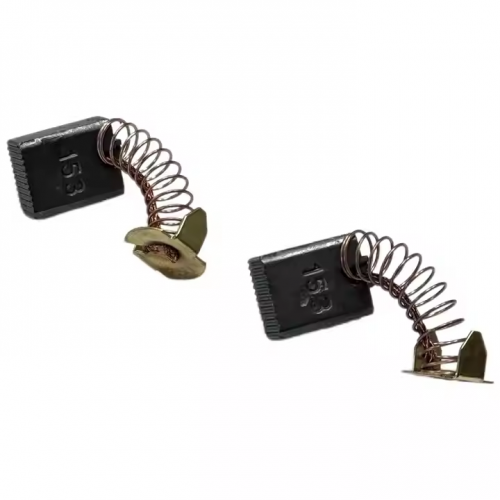

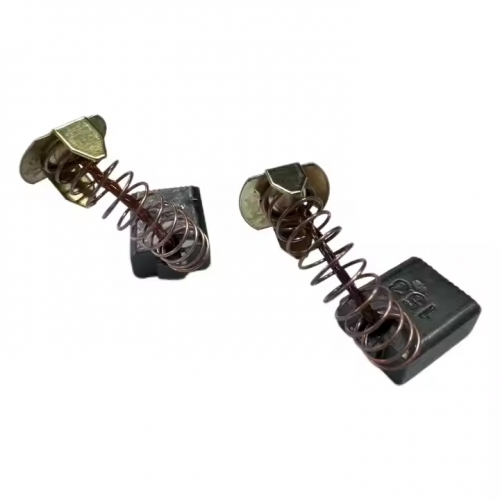

- Product Introduction: The CB153 181044-0 Replacement Tool Copper Carbon Brush for Electric Motors is a replacement copper carbon brush used in electric motors. Relevant information is as follows:
- Specifications and Dimensions: The CB153 carbon brush typically has dimensions of 6.5×13.5×16 mm (length×width×height). This precisely designed size allows it to fit specific models of electric motors.
- Material: Mainly composed of carbon/graphite copper. It combines the good lubricity of carbon and the conductivity of graphite, while the addition of copper helps improve the carbon brush’s electrical conductivity and wear resistance. This enables it to better conduct current during motor operation and reduce wear.
- Application Range: Suitable for various electric tools, especially some models of the Makita brand, such as 1805B, 1806B, 2400B, 2414, LH1040 circular saws, etc. It can also be used in Makita 9-inch circular saws (355 cutting machines), aluminum cutting machines, electric chain saws, and other equipment.
- Function: The carbon brush is an indispensable component inside the electric motor. Its function is to ensure that current is accurately transmitted to the rotor, providing guarantee for the normal operation of the motor. If the carbon brush is severely worn, it will affect the stability of current transmission, thereby affecting the normal operation of the motor, so it needs to be replaced regularly.
- Replacement Precautions: Before replacement, cut off the power supply and wear insulating gloves and safety glasses. Remove the spring clip, loosen the fastening screw of the brush braid, take out the old carbon brush, clean the brush track, then insert the new carbon brush into the brush track in the correct direction to ensure it can move freely, and then tighten the screw. After installation, check the motor operation to ensure the carbon brush is installed correctly and operates normally.
CB153 181044-0 Replacement Tool Copper Carbon Brush for Electric Motors
US$ 1.00 / 1 Piece
1Piece Minimum order
Brand:
Laiyan
model number:
10080002-HT
About this item
- Type： Power Tool Spare Parts
- Material： Carbon
- Application： MK Carbon Brush
- Single package size： 5X5X12 cm
- Single gross weight： 0.600 KG
