1. Motor type: BLDC hub motor with permanent magnets
2. Motor design: dual axle out with 17" aluminum rims
3. rim size: 6.0x17
4. Matching Tires: 190/50-17 to 220/70-17
5. magnet height: 70mm
6. Number of pole pairs: 16 pairs
7. Rated power: 12KW
8. Peak power: a few seconds 28KW
9. Rated voltage: 96V (60-144V optional)
10. Maximum speed: 45-160kph
11. Speed: 1450rpm (customizable)
12. Maximum torque: 350N.M
13. Maximum Efficiency: 90%
14. Maximum battery current: 250A (96V)
15. Maximum phase current: 530-700A
16. Brake Type: Disc Brake
17. Mounting rear fork width: 230mm
18. Phase line cross section: 25 mm2
19. Hall sensor phase angle: 120 degrees 20.
20. Temperature sensor: KTY83-122 21.
21. Maximum operating temperature: 70-120 degrees, peak 150 degrees 22.
22. Waterproof rating: IP66
23. NW/G. Weight ： 35 kg / 36 kg

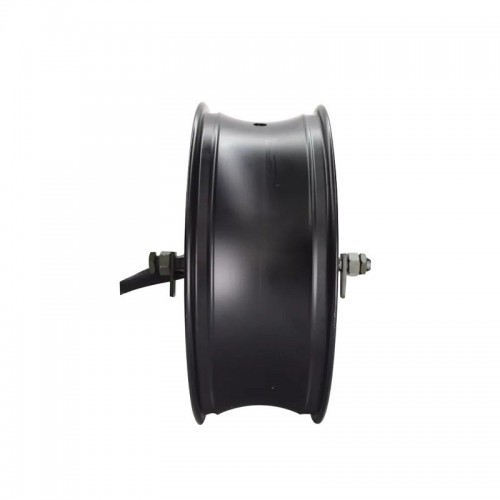

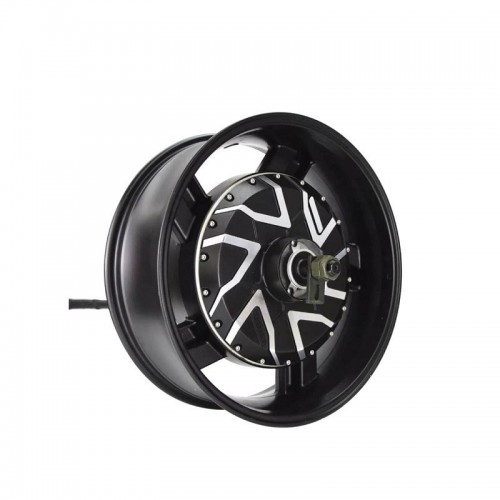

12000W Electric Motorcycle Hub Motor with 6.0x17 Wheel
US$ 1.00 / 1 Piece
1Piece Minimum order
About this item
- Model No.: QS273 Rated voltage: 96V (60-144V optional) Rated power: 12KW
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric motorcycle
- One year warranty
