1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: twin off-axis with 17-inch rims
3. rim size: 2.5x17, 3.5x17
4. Matching tires: 110/70-17,90/90-17,120/70-17
5. magnet height: 30mm
6. Number of pole pairs: 24 pairs
7. Rated power: 1500W
8. Maximum power: 2100W
9. rated voltage: 48V/60V
10. maximum speed: 50-65KPH
11. Maximum no-load speed: 650RPM (customizable)
12. Maximum torque: 140N.M
13. Maximum Efficiency: 86%
14. Continuous current: 36A
15. Maximum current: 50A
16. Brake Type: Disc Brake
17. Width of mounted rear fork: 200mm
18. Phase wire cross section: 6 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, peak 120 degrees 22.
22. Waterproof rating: IP67
23. Northwest / G. W.: 15 kg / 16 kg
24. package size: 44 * 43 * 34CM

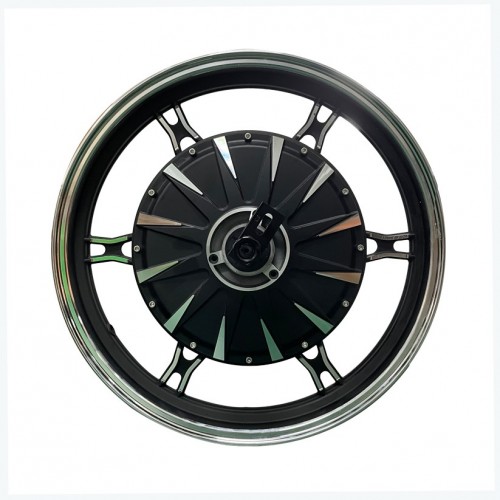

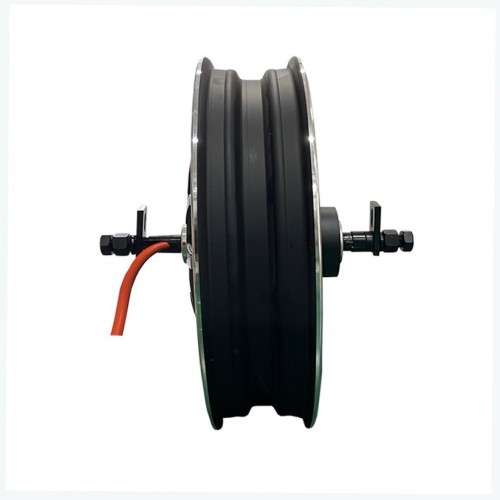

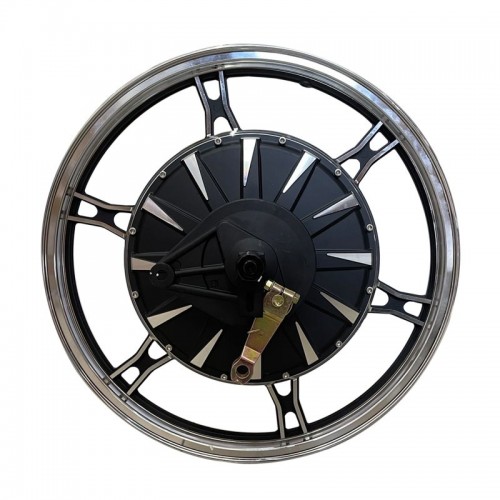

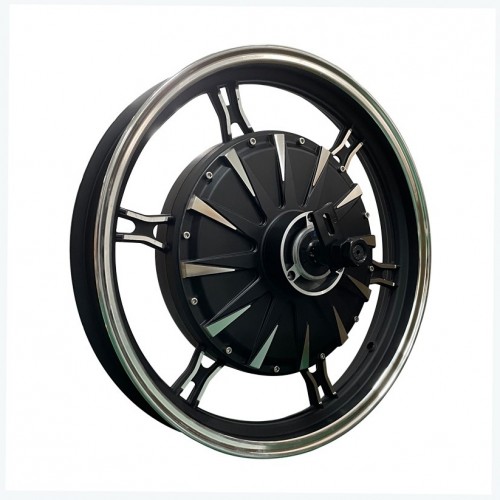

QS260 17-inch Electric Scooter Hub Motor (30H) 1500W V1 Type
US$ 138.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS260 Rated voltage: 48V/60V Rated power: 1500W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
