1. Motor type: BLDC hub motor with permanent magnet
2. Motor design: twin off-axis with 17-inch rims
3. rim size: 2.5x17
4. Tires: 110/70-17,1 00/70-17
5. magnet height: 27mm
6. Number of pole pairs: 24 pairs
7. Rated power: 1000W
8. Maximum power: 1600W
9. Rated voltage: 48V/60V/72V
10. Maximum speed: 50KPH
11. Maximum no-load speed: 650RPM (customizable)
12. Maximum torque: 110N.M
13. Maximum Efficiency: 86%
14. Continuous Current: 25A
15. Maximum current: 40A
16. Brake Type: Disc Brake
17. Width of mounted rear fork: 200mm
18. Phase wire cross section: 4 mm2 19.
19. Hall sensor phase angle: 120 degrees 20.
20. temperature sensor: optional
21. Maximum operating temperature: 70 degrees, peak 120 degrees 22.
22. Waterproof rating: IP67
23. Northwest / G...W.: 14kg / 15kg
24. package size: 44 * 43 * 34CM

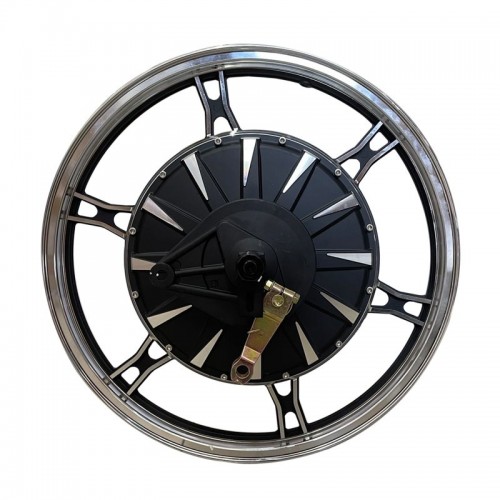

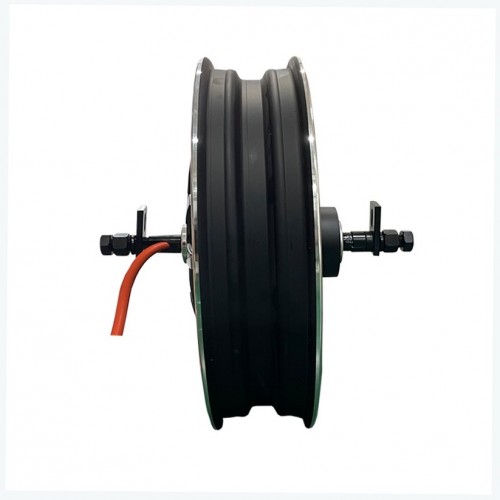

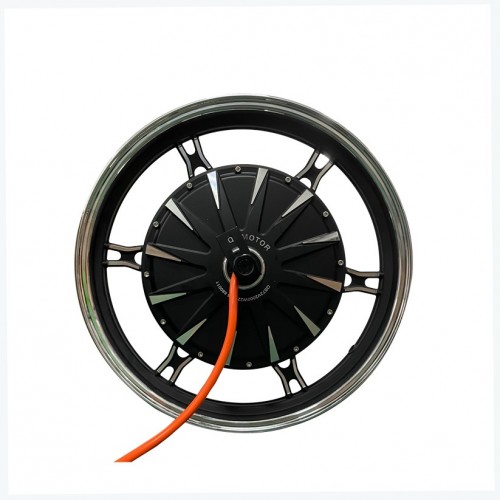

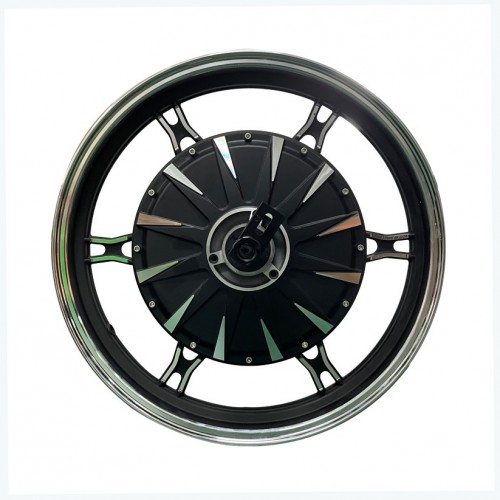

QS260 2.5*17inch Hub Motor (27H) 1000W V1 Type
US$ 138.00 / 1 Piece
1Piece Minimum order
About this item
- Model: QS260 Rated Voltage: 48V / 60V / 72V Rated Power: 1000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- For electric scooter
- One year warranty
