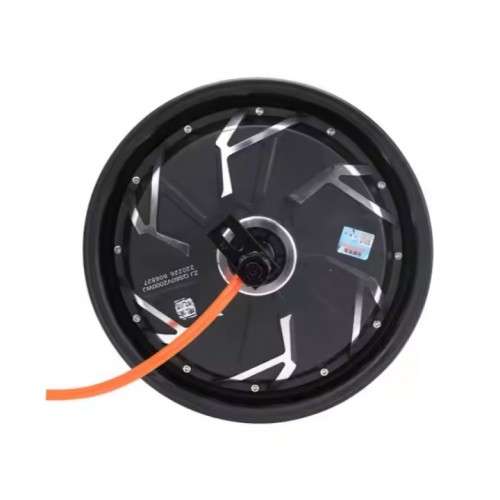

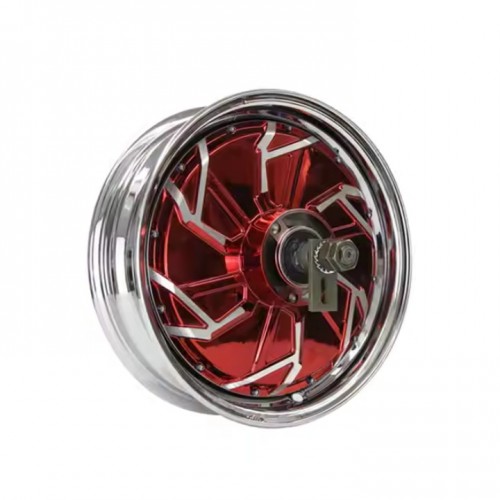

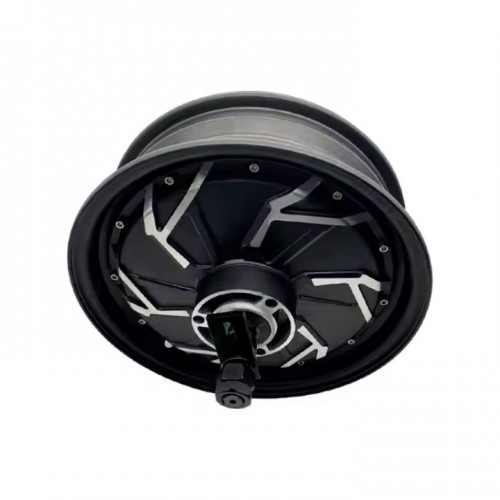

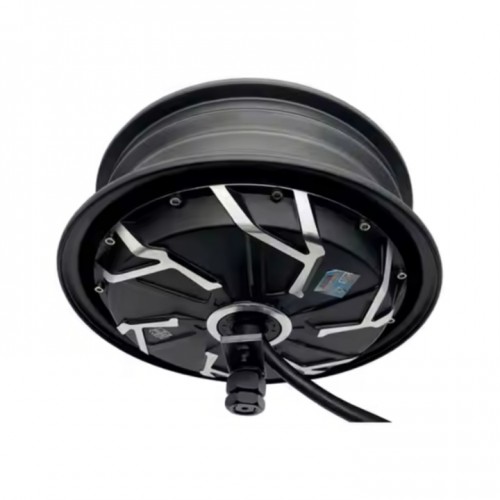

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axle with 12inch Rim (One Piece)
Rim Size: 12x3.5inch (Default Narrow Tire), Matching Tire: 130/90-12, etc.
Attachment: 12*5.0inch Wide Tire need to add another $15.0/PCS.
Magnet Height: 35mm, 16 Magnet Pair
Stator: Stator: Aluminum Core
Rated power: 2000W
Speed: 30KPH-90KPH, customizable, generally designed for 72V75KPH.
Operating voltage range: 48V-96V, default is 72V.
Maximum torque is about 195.0N.m
KV: 8.5/10.0/11.87/16.25/21.46 (optional)
Thermistor probe: KTY83-122 (default, optional) Maximum efficiency is about 88.0N.m. Thermistor probe: KTY83-122 (default, optional) , optional)
Maximum efficiency approx. 88%
Brake type: Disc brake (default), PCD3*80mm-M8, CB 58mm
Extension length: 200mm (customizable 230mm)
Dual corridor with waterproof connector (one spare in case of damages)
16mm² phase cable
Waterproof rating: IP54
Color: Black (default)






12x3.5 inch 80kph 2kw260 v4 dirt bike electric kit qs motor constant voltage
US$ 265.00 / 1 Piece
1Piece Minimum order
About this item
- Rated Voltage: 48V - 96V Rated Power: 2000W
- Type: Hub Motor
- High efficiency, durability, wear-resistant
- Suitable for e-bikes
- One year warranty
