Machine model: NR-*02N/W
Applicable wire diameter: Max0.5mm/1.2mm
Product diameter: 12-120mm
Rated speed: 600rpm (may vary depending on the product and wire diameter)
Electronic control system: Yaskawa
Airway system: SMC
Product workstation: 4 workstations
Power supply: AC200V±10%, 50/60Hz
Gas source: approximately 0.5Mpa or above
External dimensions: approximately 800 (length) X850 (width) X1800 (height) mm
Machine weight: approximately 600Kg

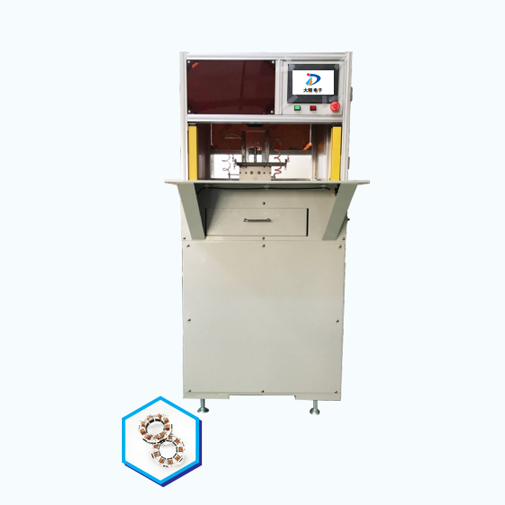

Internal winding machine
US$ 9000.00 / 1 Piece
1Piece Minimum order
Brand:
DAJING
About this item
- This model, through specialized control technology, realizes the winding and terminal wrapping functions of the inner winding of small motors by cpu control. This machine is equipped with a wire nozzle commutation mechanism and is also suitable for rotor windings
- Through the up and down movement of the wire nozzle and the rotation of the core, winding can be carried out along any trajectory. No matter what model it is, as long as the winding program number and the corresponding fixture are changed, it can correspond to the core stack thickness and pole number of various models.
- The control system of this model all adopts the servo control of Yaskawa from Japan, thus ensuring the stability and efficiency of the positions for entering and leaving the tank.
- This series of models can also be adapted to the winding of the outer rotor, achieving high-precision full-row winding.
- If you have any questions, you can contact us at any time.
