Motor type: BLDC external rotor hub motor with Hall sensor
Motor design: Dual axle with 10-inch motorized scooter rims (integrated)
Rim size: 10x2.15 inches (narrow tires as default configuration), matching
Tires: 3.0-10, 3.5-10, etc. - 10x3.0 inches (wide tires) and 10x5.5 inches (customized type)
Magnet height: 55 mm. 16-pole pair
Rated power: 4000W
Speed (customizable): 48V 21km/h~65km/h 60V 26km/h~80km/h 72V 32km/h~80km /h
Maximum torque approx. 201N.m - Thermal probe: KTY83-122 (as default option, also optional)
Maximum efficiency approx. 88%
Brake type: disc brake (as Brake type: Disc brake (as default option), PCD3*80mm-M8, CB 58mm
Breakpoint: 200mm - Dual Hall elements with waterproof connectors (one spare in case of damage)
10mm² phase cable
Waterproof rating: IP54 - Colors: black (as default option), yellow or white/glow color

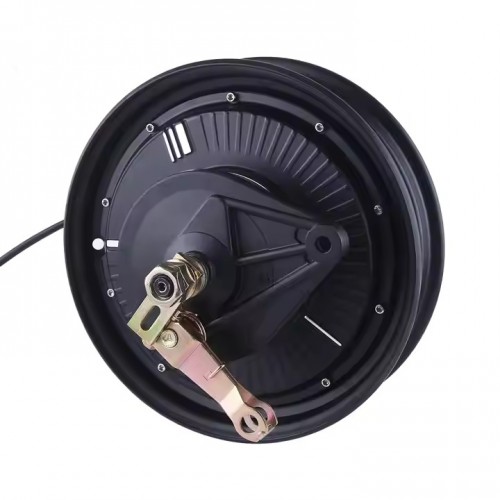

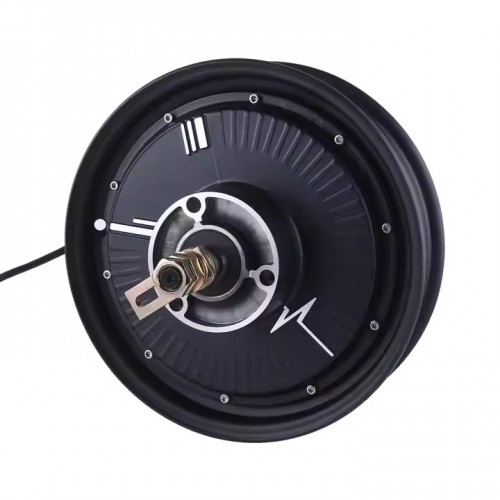

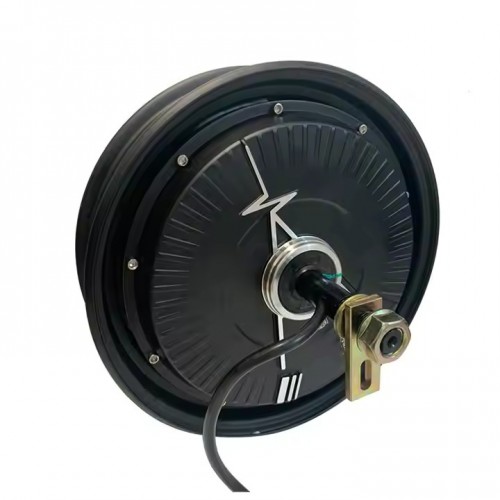

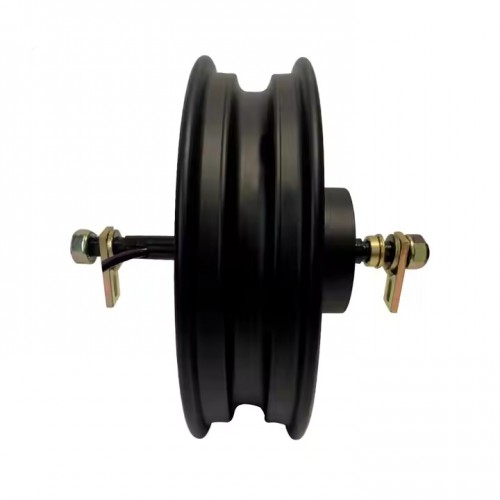

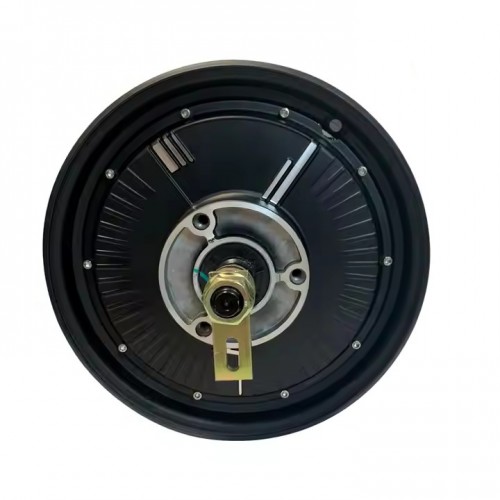

Electric Scooter Motor QSMOTOR 10 inch 1000W 205 48V-96V BLDC
US$ 90.00 / 1 Piece
1Piece Minimum order
About this item
- Rated Voltage: 48V - 72V Rated Power: 1000W
- Type: Hub Motor
- High efficiency, durable and wear-resistant
- Suitable for electric scooters
- One year warranty
