* Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
* Motor design: Twin shaft with 12-inch moped rims (integrated)
* Rim size: 12x2.15 inches (default narrow tires), matching tires: 2.5-12, 3.5-12, etc.
* 12x3.5 inches (default narrow tires), matching tires: 2.5-12, 3.5-12, etc.
* 12x3.5 inches (wide tires)
* Magnet height: 30 mm, 28 pole pairs
* Stator: Aluminum core
* Power rating: 1500 watts
* Speed (customizable):
* 48V 30km/h~60km/h 300-800RPM
* 60V 30km/h~60km/h 300-1000RPM
* 72V 30km/h~60km/h 300-1250RPM
* Color: black (default), yellow or white/illuminated
* Waterproof rating: Waterproof rating: IP54
* 6mm² phase wire
* Number of drop-outs: 200 mm
* Brake type: Disc brake (default), PCD3*80 mm-M8, CB 58 mm
* Maximum efficiency approx. 88
* Thermal probe Thermal probe: KTY83-122 (default, optional)
* KV: 8.52 (optional)
* Maximum torque approx. 141.5 N.m

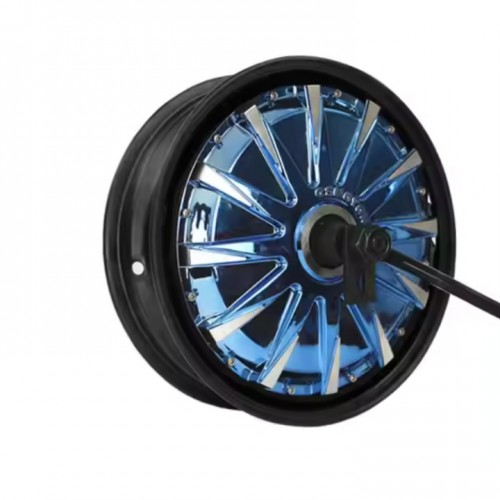

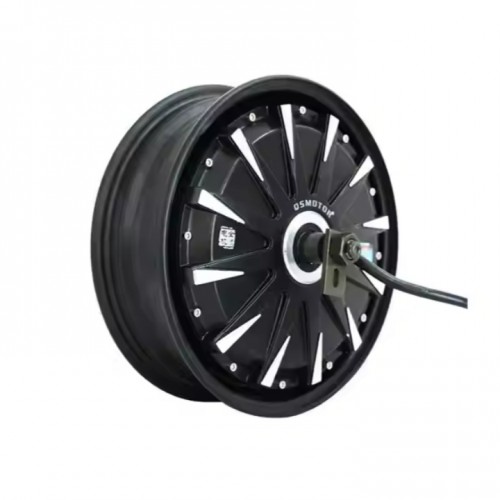

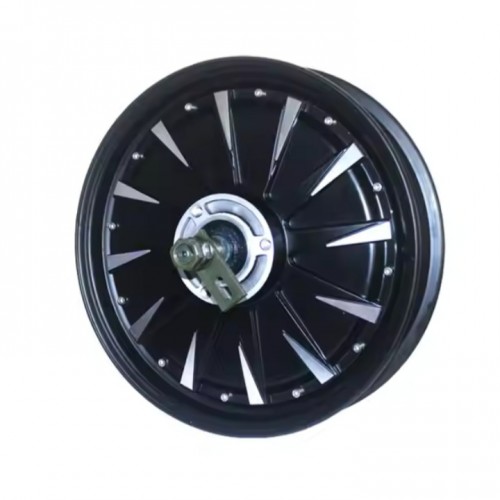

QSMotor 12X2.5 inch 1500W 260 V1 Electric Motorcycle Moped Hub Motor Brushless
US$ 111.00 / 1 Piece
1Piece Minimum order
About this item
- Rated voltage: 48V - 96V Rated power: 1500W
- Type: Hub motor Hub motor
- High efficiency, durable, wear-resistant
- Suitable for electric motorcycles
- One year warranty
