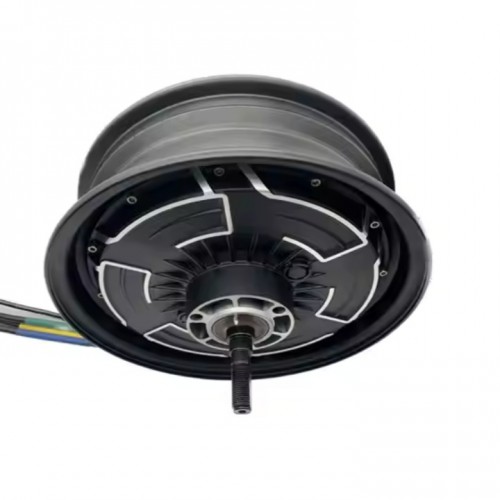

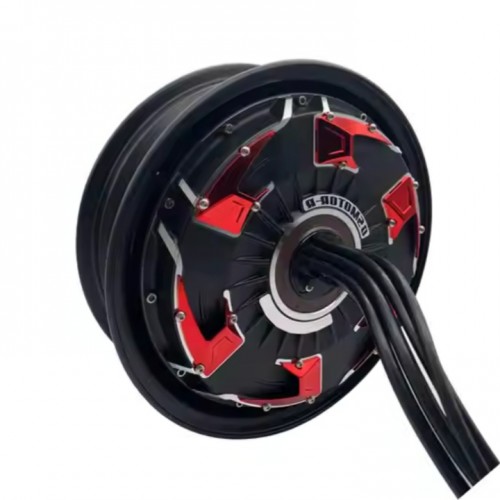

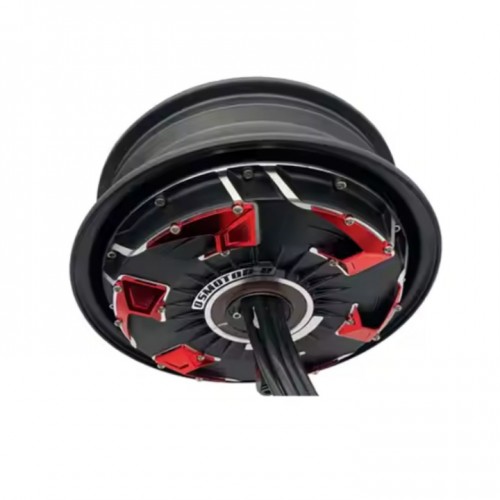

QS Motor 12*3.5 inch 3000W 260 40H V4 80kph Electric Bike Hub Motor

Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axis with 12 inch moped rims (integrated)
Rim size: 12x3.5 inch (narrow tire by default), Matching Tire: 130/90-12 etc.
Magnet Height: 40mm, 16 pole pairs
Stator: Aluminum Core
Rated Power: 3000W
Speed: 30KPH-90KPH, it is customized. of, usually we will design for 72V75KPH.
Operating voltage range: 48V-96V, default is 72V.
Maximum torque is about 207.0N.m
KV: 8.5/10.0/11.87/16.25/21.46 (optional)
Thermal Probe: KTY83-122 (default, optional)
Maximum Efficiency is about 88%
Brake Type: Disc Brake (default), the PCD3*80mm-M8, CB 58mm
Dislodgement: 200mm (customizable 230mm)
Dual Hall with waterproof connector (1 spare in case of damage)
16mm² phase cable
Waterproof rating: IP54
Color: Black (default)
