Motor Type: BLDC Outrunner Hub Motor with Hall Sensor
Motor Design: Dual Axis with 12 inch Moped Rims (Integrated)
Rim Size: 12x2.15 inch (Default Narrow Tire), Matching Tires: 2.5-12,3.5-12 etc. 12x3.5 inch (Wide Tire)
Magnet Height: 45mm, 16 Pole Pair
Stator: Aluminum Core
Rated Power: 5000W
Speed : 30KPH-100KPH, it is customized, usually we will design for 72V80KPH.
Operating voltage range: 48V-96V, default is 72V.
Maximum torque is about 240.0N.m
KV: depends on the customer's maximum speed requirement (optional)
Thermal probe: KTY83-122 (default, optional)
Maximum efficiency approx. 88%
Brake type: disc brake (default), PCD3 * 80mm-M8, CB 58mm
Dislodgement: 200mm (customizable 230mm)
Dual halls with waterproof connectors (one spare in case of damage)
16mm² phase cable
Waterproofing rating : IP54
Color: Black

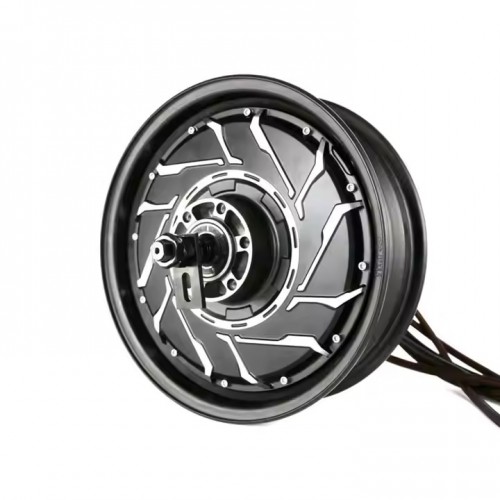

12 Inch 5000 Watt 260 45H V4 Brushless DC for Electric Motorcycle Wheels
US$ 385.00 / 1 Piece
1Piece Minimum order
About this item
- Rated voltage: 48V - 96V Rated power: 5000W
- Type: Hub Motor
- High efficiency, durable, wear-resistant
- Suitable for electric scooters
- One year warranty
