1 years
China
Certification: ISO9001 factory production; CE documents available upon request

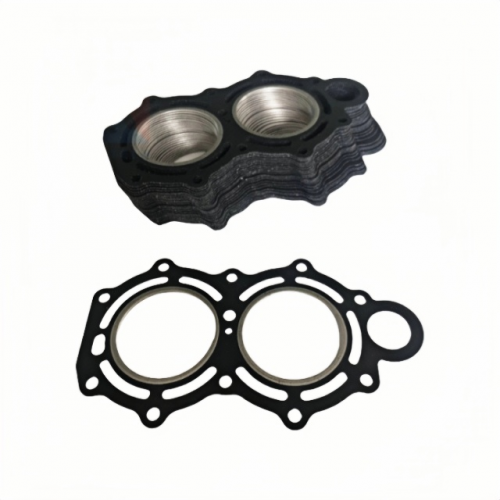

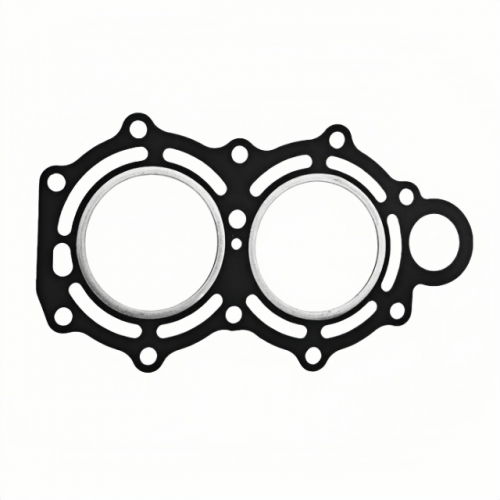

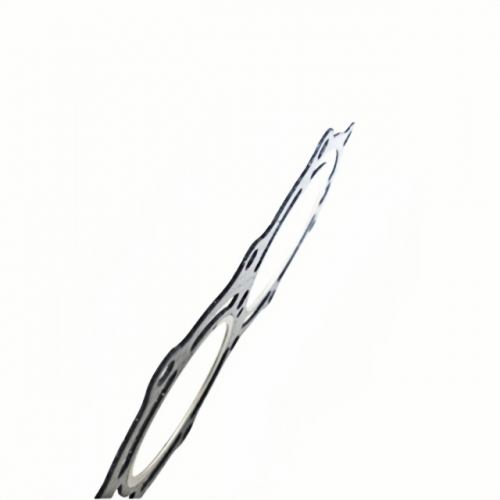

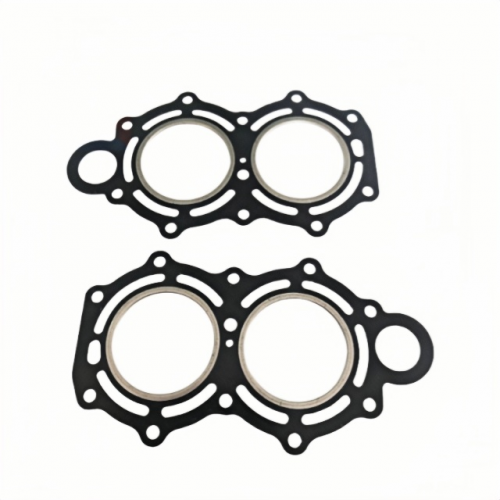

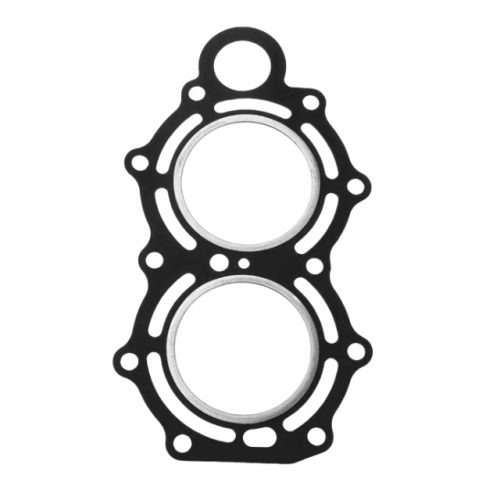

Real Product Photos: Cylinder head gasket full view, sealing surface close‑up, Tohatsu M6B M8B M9.8B outboard mounting reference picture
This heavy‑duty aftermarket cylinder head gasket is a reliable interchangeable spare for Tohatsu, Nissan and Mercury 6HP, 8HP, 9.8HP outboard motors M6B, M8B and M9.8B. It cross‑replaces OEM part numbers 3B2‑01005‑0, 3B2‑01005‑1 and 3B2‑01005‑2.
Constructed with multi‑layer composite high‑temperature‑resistant sealing material. This head gasket delivers excellent pressure‑resistance, thermal‑resistance and anti‑corrosion performance.
It withstands high combustion pressure, frequent temperature fluctuation and humid salt‑mist marine surroundings to maintain stable sealing performance.
Sandwiched between cylinder head and engine block, this gasket seals combustion chambers and cooling water passages.
Dependable sealing prevents compression loss, cooling‑water leakage, gas blow‑by and coolant‑gas mixing, securing stable cylinder compression for consistent engine operation.
Manufactured in strict compliance with original OEM specifications, this gasket matches original contour, port layout and thickness. It resolves common top‑end faults such as gasket blow‑out, water entering cylinder, compression loss, over‑heating and power drop caused by aged, burnt or damaged original factory head gasket.
This 3B201-0050M Cylinder Head Gasket for Tohatsu Nissan Outboard Motor 2-Stroke 6HP 8HP 9.8HP, Also Used On Chinese Hankai, Hidea, Parsun 9.8HP 10HP 2 Stroke Ouboard Engine.
Reference part number: 3B2-01005-0/ 3B2-01005-1 27-8036637 27-803663021
Fit TOHATSU Model (Year 1997 to 2006 later): M6B, M8B, M9.8B series
Fit Nissan Model: NS6B, NS8B, NS9.8B serie
