1 years
China
Certification: ISO9001 factory production; CE documents available upon request

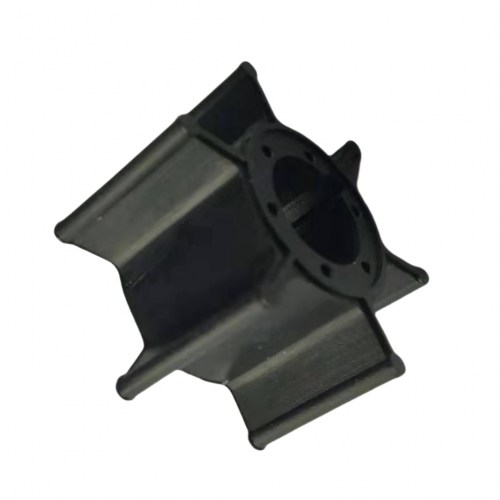

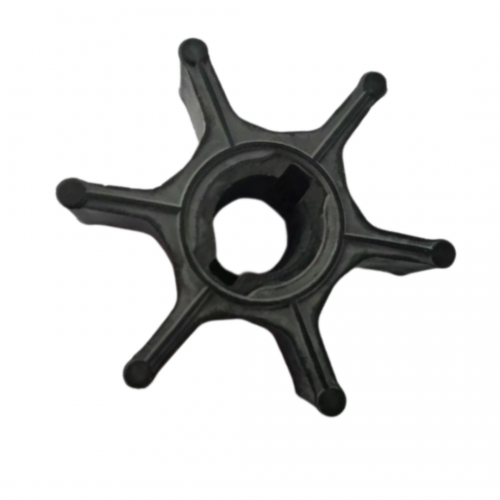

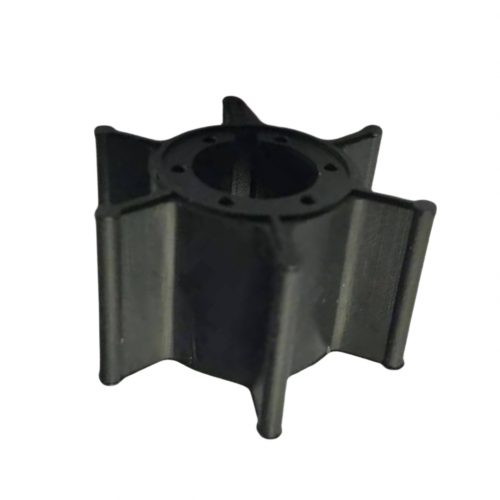

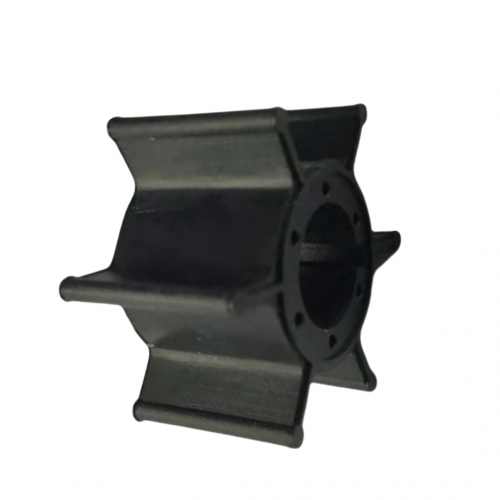

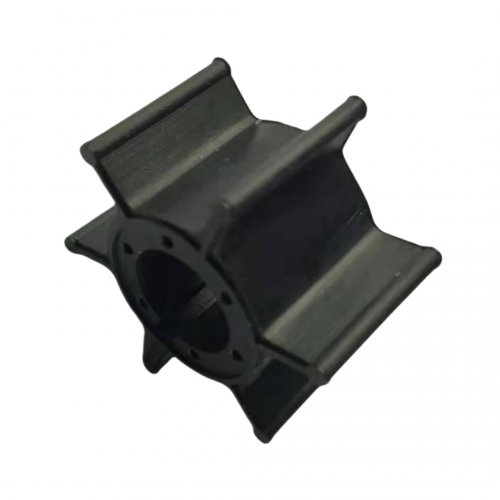

Real Product Photos: Full impeller overview, 6‑blade close‑up shot, inner bore detail, water pump assembly installation reference picture
This heavy‑duty aftermarket water pump impeller serves as a viable drop‑in replacement for Suzuki 4HP‑8HP outboard motors. It works interchangeably with OEM part numbers 17461‑98501, 17461‑98502 and 17461‑98503.
It is molded from high‑grade marine‑grade neoprene rubber. This component delivers great tear strength, dependable aging resistance and solid defense against saltwater corrosion, even within harsh on‑water operating environments.
Under continuous rotating pressure, the impeller preserves its original blade profile. It greatly reduces risks of blade cracking, surface scuffing and permanent structural distortion.
All vital dimensions adhere to OEM specifications. This allows installers to complete fast, trouble‑free drop‑in fitting with no additional adjustments. This part resolves common cooling‑system breakdowns. These issues include engine overheating, inadequate cooling‑water output and weak water flow, and worn‑out factory impellers are the leading source of these faults.
Swap your worn or damaged impeller with this unit to restore stable cooling‑water circulation for your Suzuki outboard. Apply specified water‑pump lubricant during installation. Never start the engine without sufficient water supply. Simple proper operating habits will extend impeller service lifespan and maintain reliable engine output during marine trips.
Replacement:
Suzuki outboard engine part: 17461-98500 / 17461-98501 / 17461-98502 / 17461-98503 ,for Sierra 18-3097.
Applications:
Fits 2-Stroke:
2HP DT2 ;
3HP DT3.5;
4HP DT4;
5HP DT5 ;
6HP DT6;
8HP DT8.
Fits 4-Stroke:
4HP DF4;
6HP DF6 2003-2010.
