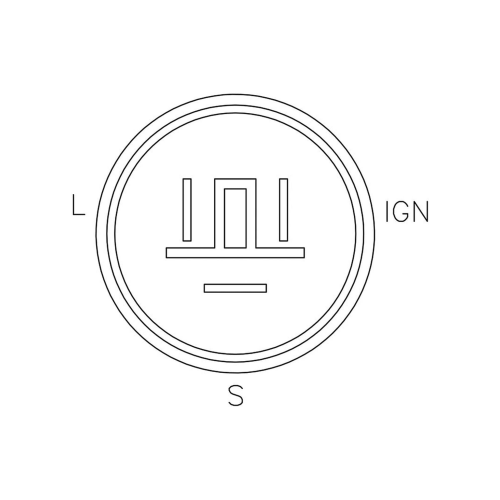

SPECIFICATIONS: 12 Volt, A-Circuit, Low Side Drive Regulator, S-IG-L Terminals, 14.5 Vset
DIMENSIONS: 57.5mm Mtg. Length
NOTE 1: Standard lamp function - no output. Transpo
FEATURE 2: Field Rating 5 Amps
FEATURE 3: A typical Vsat is 0.4 Volts, @ 5 Amps, 12 Volts
FEATURE 4: Ignition Activated
FEATURE 5: Over voltage indication and under voltage indication
This list is a sample of all the compatible cars for this part. Make sure this product fits your car by using the part finder above.
REPLACEMENT FOR or COMPATIBLE WITH MERCURY:
300XL Promax Racing (98-00)
300L Promax Racing (98-00)
300CXL Promax Racing (98-00)
300CL Promax Racing (98-00)
250XXL EFI (95-00)
250XL EFI (95-00)
250CXXL EFI (95-00)
250CXL EFI (95-00)
225XXL Optimax (98-00)
225XXL EFI (95-00)
225XXL (94-99)
225XL Optimax (98-00)
225XL EFI (95-00)
225XL (94-99)
225L Optimax (98-00)
225L EFI (96-00)
225L (94-99)
225CXXL Optimax (98-00)
225CXXL EFI (95-00)
225CXXL (94-99)
225CXL Seapro (96-98)
225CXL Optimax (98-00)
225CXL EFI (95-00)
225CXL (94-99)
200XXL Optimax (98-00)
200XL Optimax (98-00)
200L Optimax (98-00)
200CXXL Optimax (98-00)
200CXL Optimax (98-00)
REPLACEMENT FOR or COMPATIBLE WITH MARINER:
250 (EFI) multiple years
225 SEA PRO (Carb) multiple years
225 (EFI) multiple years
225 (DFI) multiple years
225 (Carb) multiple years
200 (DFI) multiple years
Voltage Regulator Compatible With Mercury 225CXL EFI 95-00 126000-1770
US$ 59.00 / 1 Piece
1Piece Minimum order
About this item
- Replacement Part Numbers: 126000-1770, 23052096, 230-52096, AND6077, 1260001770
- Condition: New; Voltage: 12V; V-Set: 14.5; Circuit Type: A; Plug Code: 280; Mounting Hardware Included: No; Number of Pieces: 1; Country of Origin: CN; Notes: S, IG, L
- CS-N277
