Attention:
Our products have a wide range of sizes and specifications, so the prices should be filled in uniformly. Please do not subject to the above prices. If you have any demand, please give priority to product pictures and models, or contact us directly for further consultation and negotiation. Thank You for Your Cooperation!! Please consult customer service price and model before ordering!!! We can provide free samples for you to better verify our products and test quality.
Specifications:

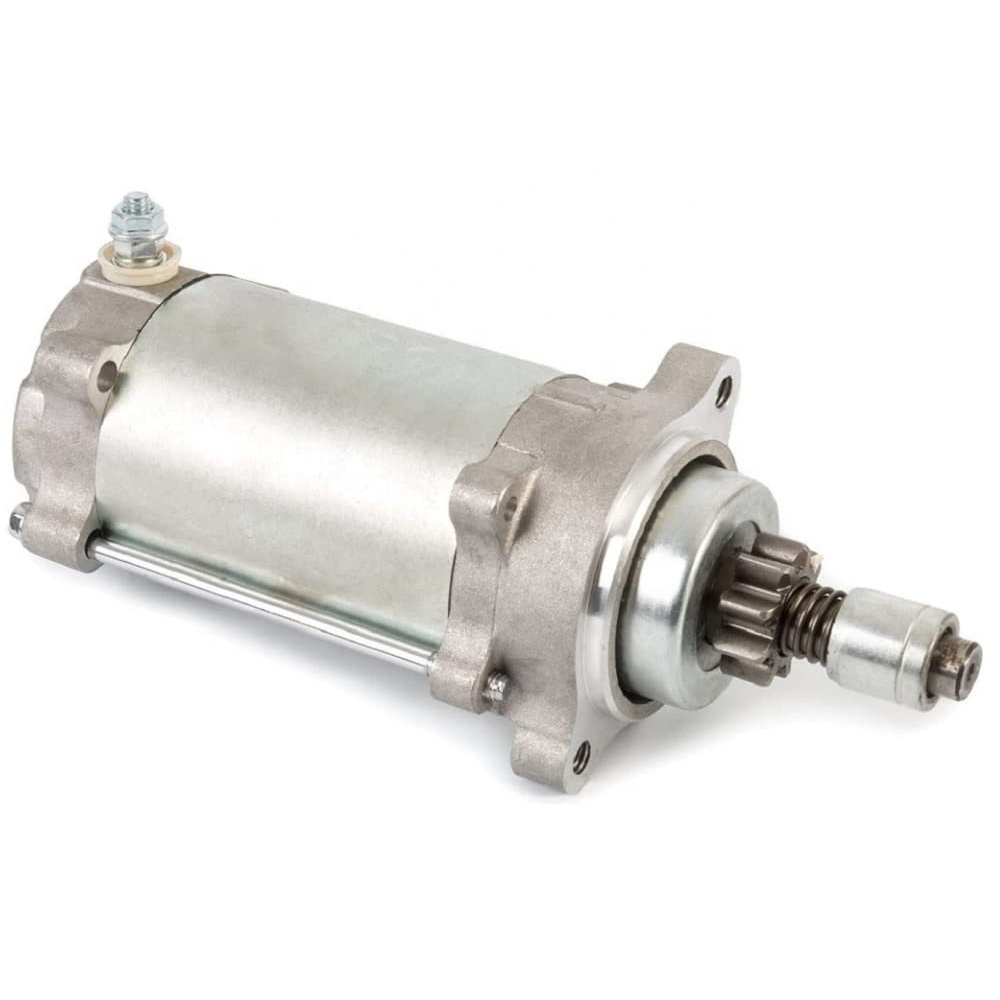

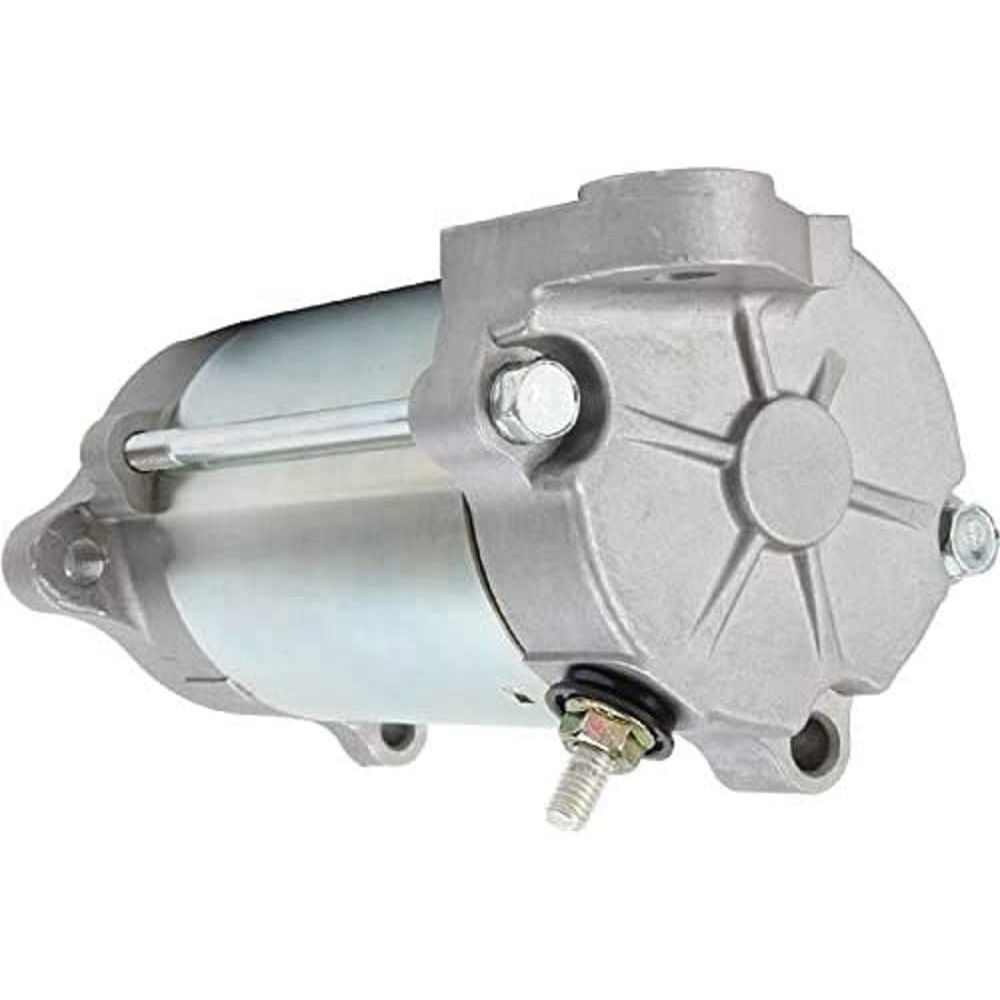

* Specs: Starter, Voltage: 12, Rotation: CW, Starter Type: PMDD, Number of Teeth: 9, Gear OD: 1.142in / 29mm, Length: 6.484in / 164.7mm, Mtg Ear 1 Hole: M8x1.25 Threaded, Mtg Ear 2 Hole: M8x1.25 Threaded, Mtg Ear 3 Hole: 8.5mm x 10.8mm Slotted, Mounting Ear Center to Center 1: 3.122in / 79.3mm, Registry OD: 2.362in / 60mm, Notes: Third Mounting Hole On CE Housing, M6 B+ Stud
* Replaces OEM Part Numbers: Bombardier: 515-176-754, 515-176-858, 515-177-389, Denso: 428000-6330, 428000-7011
Compatible With:
LYNX XTRIM 800 w/799cc 2008-09SKI-DOO EXPEDITION TUV-600 w/597cc
2009-10SKI-DOO GSX LTD 600HO 2009SKI-DOO MX Z 500SS 2009SKI-DOO MX Z 600HO 2009SKI-DOO MX Z 800R 2009SKI-DOO
EVEREST 500SS 2009SKI-DOO, EVEREST 600HO 2009SKI-DOO EVEREST 800R 2009
Item Condition: NEW, AFTERMARKET Unit Type: Starter
Part Type: UNIT
Voltage: 12
Rotation: CW
Teeth: 9
BOMBARDIER: 515-176-754, 515-176-858, 515-177-389
DENSO: 428000-6330, 428000-7011
