Manufactured in ISO9001‑certified production facility. CE documents available upon buyer’s request.
Real Product Photos

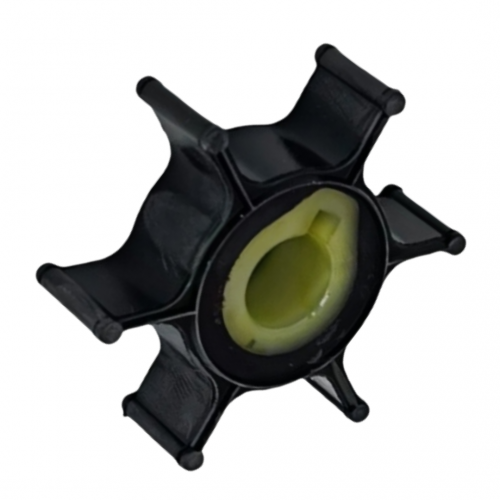

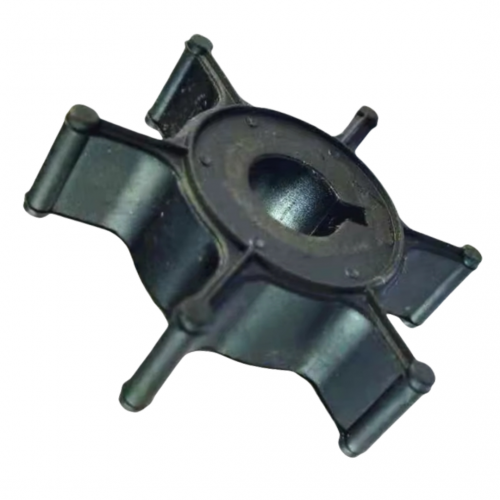

Water pump impeller overall view, impeller blade close‑up shot, shaft bore detailed view, outboard water pump assembly installation reference picture
Independent Product Description
This robust rubber water pump impeller is a reliable aftermarket replacement compatible with OEM part numbers 646‑44352‑00 and 646‑44352‑01 for Yamaha outboard motors.
Made of high‑performance marine‑grade rubber compound, this impeller provides good elasticity, strong tear‑resistance and excellent salt‑water corrosion resistance. It maintains stable blade geometry under continuous rotating loads. Regular service intervals effectively prevent blade cracking, scuffing and premature failure under harsh marine operating conditions.
All structural dimensions and inner‑bore specifications strictly match OEM standards, supporting fast, accurate and trouble‑free drop‑in installation. This replacement solves common cooling‑system issues including engine overheating, insufficient cooling‑water flow, weak water output and heavily worn‑out impeller blades.
Swap your worn‑out or damaged impeller with this unit to restore stable cooling‑water circulation for your Yamaha outboard motor. Apply dedicated water‑pump lubricant during assembly and never run the motor without water supply. Proper fitting guarantees long‑term dependable cooling performance under real‑world boating scenarios.
Water Pump Impeller Reference to YAMAHA part number:
646-44352-01
Engine type :
YAMAHA 2-Stroke 2HP 2A 2B 2C outboard motors;
Mercury Mariner 2-Stroke 2HP 2A 2B 2C outboard motors.
Ref:
SIERRA Parts No.:18-3072
CEF Parts No.:500324
MALLORY Parts No.: 9-45604
YAMAHA Parts No.: 646-44352-01, 646-44352-00, 646-44352-01-00
Mercury Mariner Parts No.:47-80395M
Dimensions:
Number of Blades : 6
Height/ Width/Depth:11.15mm
Outer/External impeller diameter:47.5mm
Internal shaft insert/hub diameter: 13.7mm
Fits the Following Models:
Yamaha Outboard Motors:
2 hp 2MSHA - 2002
2 hp 2MSHKZ - 2001
2 hp 2MSHP - 1991
2 hp 2MSHQ - 1992
2 hp 2MSHR - 1993
2 hp 2MSHS - 1994
2 hp 2MSHT - 1995
2 hp 2MSHU - 1996
2 hp 2MSHV - 1997
2 hp 2MSHW - 1998
2 hp 2MSHX - 1999
2 hp 2MSHY - 2000
2 hp 2MSHZ - 2001
2 hp 2SD - 1990
2 hp 2SF - 1989
2 hp 2SG - 1988
2 hp 2SH - 1987
2 hp 2SJ - 1986
2 hp 2SK - 1985
2 hp 2SN - 1984
Mercury Mariner Outboard Motors:
2 hp - 2A (Serial Code 646)(ALL)
2 hp - 2B (Serial Code 6A1)(Serial # 008801 & Newer)
