1.  Practical guide for purchase and maintenance

●Pit avoidance skills (based on industry data)

     a.Be wary of the trap of ultra-low prices:

Motors below 10 $ are mostly recycled old parts, and the gears are severely worn out. 70% of users report that they “get stuck within 3 months of use.”

     b.  Check the model adaptation code:

Check the brand's official website through the vehicle VIN code (automatically match the compatible model after entering) to avoid buying mistakes.

     c.Priority is given to certified products:

Genuine motors should be marked with CE, SAE and other certification marks, and there are clear parameter descriptions (such as speed and voltage) on the packaging.

●DIY replacement points

     Tool preparation: multimeter (detect motor resistance, normal range 2-5Ω), socket wrench, plastic crowbar (avoid scratching the body), the average price of the tool set is 15-30 US dollars.

Key steps

1. Disconnect the negative electrode of the battery to prevent short circuit；

2. Remove the wiper arm (pay attention to mark the initial position to avoid misalignment after installation)；

3. Loosen the motor fixing screws and unplug the wiring harness plug (note the direction of the interface)；

4. After installing the new motor, power on to test the wiper angle (a 1-2cm gap needs to be reserved with the edge of the glass).

●Maintenance cycle

     Daily maintenance: Clean the motor cooling hole with compressed air every 6 months (the average price of the compressed gas tank is 5 US dollars) to avoid overheating caused by dust accumulation.

     Lubrication and maintenance: Add silicon-based grease to the gear shaft every 2 years (WD-40 special grease is recommended, the average price is 8 US dollars) to extend the life by more than 30%.

2. Industry standards and authoritative references

     SAE J381-2025: The globally recognized standard for wiper systems, which requires the motor to pass 1000 hours of salt spray test and 500 high and low temperature cycles to ensure extreme environmental reliability ([Interpretation of SAE official standards] (https://www.sae.org/standards/content/j381_202502 /)).

     JB/T 6705-2006: China's automotive industry standard requires motor gear hardness of 58-63HRC and tooth surface accuracy of not less than 9. Domestic high-end motors generally follow this standard.

3. Frequently asked questions and answers

What are the typical manifestations of wiper motor failure?

Top3 problems:

① Not working at all (mostly because the motor is burned out);

② The speed is fast and slow (gear slippage);

③ Abnormal noise (insufficient lubrication or misplaced installation).

Is there a big gap between the sub-factory parts and the original parts?

     For old cars (over 8 years old), sub-factory parts (such as Cardone) are more cost-effective; for new cars, it is recommended to choose original parts to avoid affecting the warranty of the vehicle (BMW/Mercedes-Benz and other brands clearly require original parts for key components).

How to determine whether the motor needs to be replaced?

     Use a multimeter to measure the resistance. If the value is >10Ω or close to 0, it means that the internal short circuit/circuit is broken and must be replaced; if the resistance is normal but the wiper is weak, it may be poor contact with the wiring harness (just clean the plug).

     Through the analysis of industry data and technical details, consumers can clearly judge “whether the price is reasonable” and “which type of product to choose.”Whether it is economical car owners who pursue cost-effective performance or luxury car users who pay attention to reliability, they can find suitable solutions in this article.

4. A case

     Here is a real case about how much it cost to replace the Tiggo 5 wiper motor by yourself.

     During the Chinese New Year, the Tiggo 5 wiper motor, which has been in use for more than 8 years, broke down. It was originally a bit underpowered. As a result, on the way back to Suzhou from my hometown, I found that it couldn't be scratched at all. At first, I put the wiper up and I could barely move it. After a while, I would lie down completely.

     After getting off the highway, I entered the largest repair shop in Quanjiao. According to the phenomenon, it was confirmed that the motor was broken, but there were no spare parts. I asked the nearby 4s and there were no spare parts. It rained a lot, so I had no choice but to hit the road. Fortunately, the rain was very small, and driving basically did not affect it.

     After arriving in Suzhou, I decided to replace the motor by myself. The original factory of my car belongs to the doctor. I learned that Guiwanjiang is also the original factory, which is much cheaper. The price of the doctor is close to 300, and Guiwanjiang is 138.

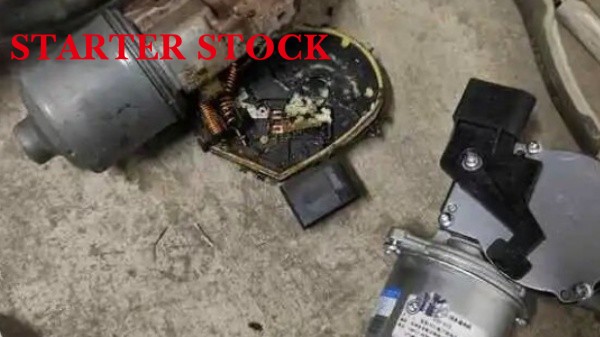

     It will be replaced as soon as it is in hand. Since the disassembled Dr. Motor did not take a photo of the first-hand oil, the simple instructions are as follows (you can change it at the repair shop if you don't know how to change it, the normal price is 100, and the price given by a certain owner, the black heart store next door actually quoted 300)

Next are the steps：

     1.Remove the wiper arm. Due to the long time, the wiper arm cannot be removed after the screws are unscrewed. If you have the conditions, you can buy a puller in advance. If you remove it, it will be very easy (If you don't know what a puller is, you can search for it). According to the forum, I found that slapping the wiper spring was fruitless. On this basis, I went up and down, shaking the wiper arm repeatedly from left to right and finally removed it.

     2.Remove the rainshield at the wiper, remove all the screw buckles that can be seen, and take them off. Pay attention to the buckles on the outermost sides of the sealing strip. Don't lose it when you remove it.

     3. Remove the wiper motor connecting rod, it is recommended to use a socket wrench, phillips screwdriver is easy to slip, of course you can try it first, mine will slip and change the socket to remove

     4.Use a wrench to remove the screws at the connection between the motor and the swing arm

     5.Use the rice-shaped hexagon of T27 to remove the motor and replace it with a new motor. Pay attention to confirm the position of the thread when removing the swing arm, and install the motor in the original position according to the original position, otherwise it will be easy to hang out of place.

     After the replacement is done, it can be installed as it is. It is very simple.

Pay attention to the tools.

     1.Phillips screwdriver (used to remove the swing arm, you can also use a socket wrench)

     2. T27 wrench (not required to buy a motor and swing arm)

     3.Socket wrench (I have a set, so I didn't remember the size, some people said it was a T12 and a T13)
